Home  >  HVAC Service Parts  >  Motors  >  Condenser Fan Motors  > 3736 1075/1 460V 1/4HP 5.6"

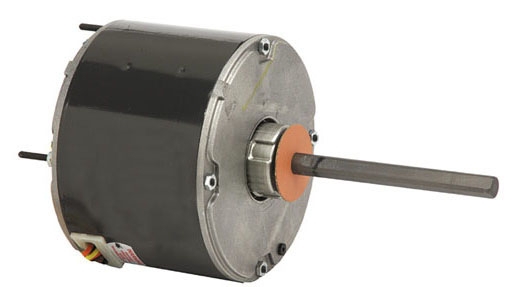

3736 1075/1 460V 1/4HP 5.6" CONDENSER FAN MOTOR REVERSIBLE

Item #: 99267
Manufacturer Item: 3736
Manufacturer: NIDEC MOTOR CORP.
460 V, 0.8 A, 1075 RPM, NEMA 36 Frame, TEAO, Condenser Fan Motor

140 Degree Ambient Design

Bearing Have All Angle Thrust System

Class B Insulation

Extended Studs

36 Inch Leads

Hubless Lead End

Drain Holes Both Ends

Automatic Reset Thermal Overload Protector

Continuously Duty

condenser fan motors

Power Rating
1/4 HP
Voltage Rating
460 Volt
Motor FLA
0.8 Amp
Speed Rating
1075 RPM
Number of Speeds
1
Enclosure Type
TEAO
Application
Residential and Commercial Condensing Unit
Insulation Class
B
Reversible
Yes
Mounting
Stud, All Angle
Weight
12 Pound
