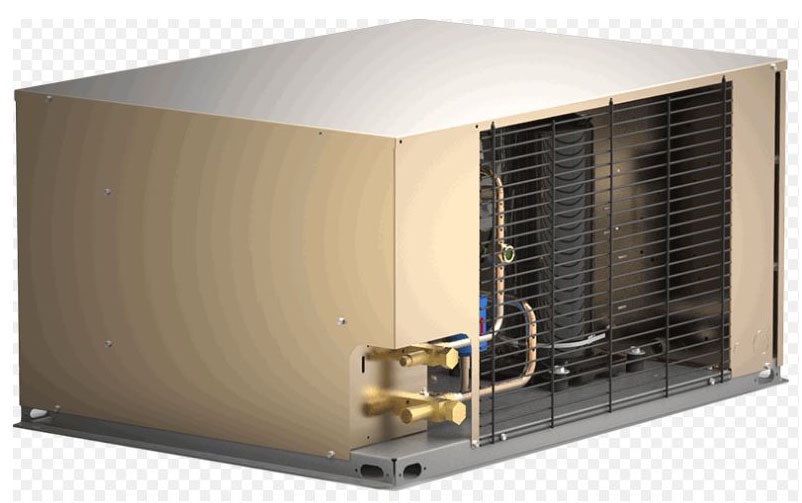

HCH0030MCACHA0000 Cond OD Horz 3hp Medium Temp 208-230/3/60 Hermatic Comp Standard Base

Item #: 97895
Manufacturer Item: HCH0030MCACH0000
Manufacturer: CHANDLER REFRIGERATION/HEATCRA
26370 BTU/Hr Cooling, 208 to 230 VAC 3-Phase, R-404A/507A/407A/407C/448A/449A, Air Cooled Condensing Outdoor Unit
4901.33
This item is discontinued
97895

Microchannel Coil standard on all units

Hinged Door that can be removed without tools

Captive Fasteners stay on door

Larger E-Box with Adjustable Low Pressure Switch standard on all units and wiring in e-boxes secured with reusable clips

Lifting and Mounting holes in all four corners

Liquid Line Filter Drier and Sight Glass standard on all units with sight glass viewable from outside cabinet

Base Legs extend full perimeter of unit for level installation

Base Valves accessible without removing cabinet and access ports open to field piping

Painted steel cabinets for superior strength and corrosion protection

Outdoor Air Cooled Condensers-Equip Refrigeration

Frequency Rating
60 Hertz
Type
Horizontal Air Discharge, Hermetic Compressor
Voltage Rating
208 to 230 Volt AC
Number of Phases
3
Approval
UL (Canada and US)
Cooling Capacity
26370 BTU/Hour
Weight
300 Pound
Temperature Control Type
Thermostat
Current Rating
3.5 Amp Full Load (Fan Motor), 65.5 Amp Locked Rot
