Home  >  Refrigeration  >  Equipment Refrigeration  >  Evaporators  > HCH0025MCACZA0100 Cond OD Horz

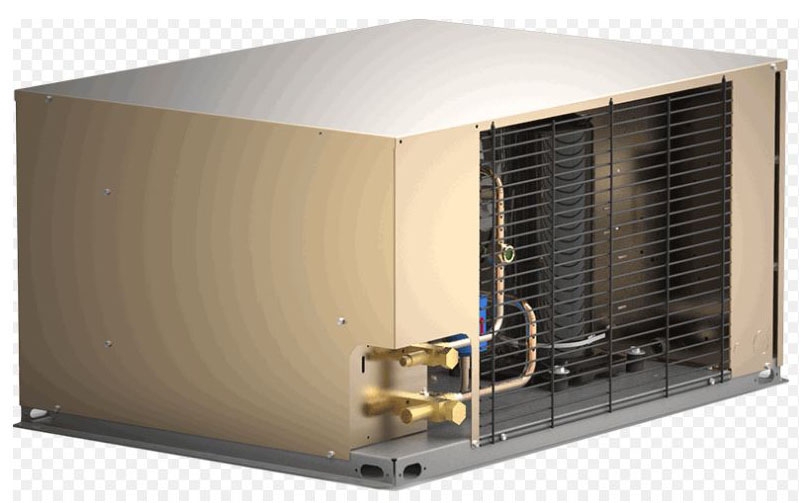

HCH0025MCACZA0100 Cond OD Horz 2.5hp Medium Temp 28-230/3/60 Scroll Comp Timer-Air

Item #: 96243
Manufacturer Item: HCH0025MCACZA0100
Manufacturer: CHANDLER REFRIGERATION/HEATCRA
22860 BTU/Hr Cooling, 208 to 230 VAC 3-Phase, R-404A/507A/407A/407C/448A/449A, Air Cooled Condensing Outdoor Unit
96243

Microchannel Coil standard on all units

Hinged Door that can be removed without tools

Captive Fasteners stay on door

Larger E-Box with Adjustable Low Pressure Switch standard on all units and wiring in e-boxes secured with reusable clips

Lifting and Mounting holes in all four corners

Liquid Line Filter Drier and Sight Glass standard on all units with sight glass viewable from outside cabinet

Base Legs extend full perimeter of unit for level installation

Base Valves accessible without removing cabinet and access ports open to field piping

Painted steel cabinets for superior strength and corrosion protection

Evaporators

Cooling Capacity
22860 BTU/Hour
Frequency Rating
60 Hertz
Number of Phases
3
Type
Horizontal Air Discharge, Scroll Compressor
Voltage Rating
208 to 230 Volt AC
Approval
UL (Canada and US)
Temperature Control Type
Thermostat
Weight
230 Pound
Current Rating
1 Amp Full Load (Fan Motor), 73 Amp Locked Rotor (
