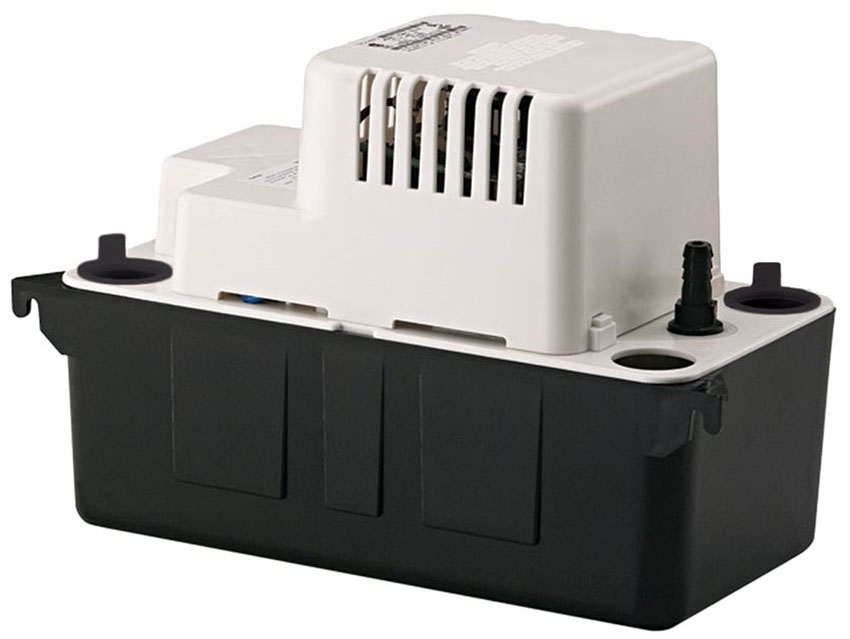

VCMA-15ULST COND PUMP 115V

Item #: 95511
Manufacturer Item: 554415
Manufacturer: LITTLE GIANT/FRANKLIN ELECTRIC
1/50 HP, 115 VAC 60 Hz, 65 GPH, 6.5 PSI, ABS, Automatic, Vertical Centrifugal, Condensate Pump
95511

Stainless steel motor shaft

Automatic start and stop operation

Some models equipped with float (solid polymer) activated switch for automatic High level water detection (overflow detection switch)

For models with overflow detection switch: dual function NO and NC operation

Built-in wall mount tab on tank

Removable pump float locking tab for safety during transportation

condensate pumps

Discharge Head
15 Foot
Input Supply Rating
115 Volt AC 60 Hertz, 1 Amp
Flow Rate
65 GPH at 1 Foot
Inclusions/Features
3/8 Inch Barbed Locking Discharge Adapter, Overflo
Overall Dimensions
11 Inch Length x 5 Inch Width x 3.6 Inch Height
Type
Automatic, Vertical Centrifugal
Applicable Standard
CSA (Canada and US)
Application
Air Conditioning, Refrigeration, Dehumidification
Power Rating
1/50 HP
Reservoir Capacity
1/2 Gallon
Temperature Rating
140 Deg F
Housing Material
ABS Plastic
Power Cord Length
6 Foot
Casing Material
ABS Plastic
Pressure Rating
6.5 PSI
Impeller Material
Glass Filled Polypropylene
Motor Type
Thermally Protected, Fan Cooled
Shaft Material
Stainless Steel
Reservoir Material
ABS Plastic
End Connection
Barbed Outlet
Reservoir Inlet Size
(3) 1-1/8 Inch
