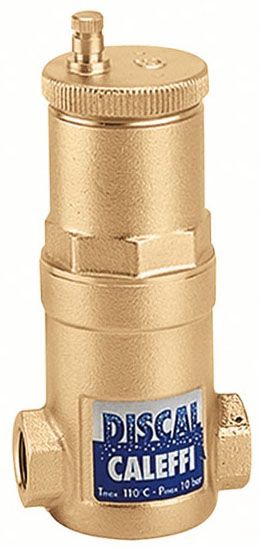

551022A Discal Air Separator 3/4" Sweat (compact)

Item #: 95299
Manufacturer Item: 551022A
Manufacturer: CALEFFI NORTH AMERICA,INC
3/4" x 3/4", Soldered x Soldered, 6 GPM, 150 PSI, Brass, Micro-Bubble, Air Separator
95299

The DISCALĀ® air separator is used to continuously remove the air contained in hydronic circuits of heating and cooling systems

The air discharge capacity is very high

They automatically remove all the air present in the system down to micro-bubble level with low head loss due to the special internal shape of the separator body

Flow direction of the DISCAL air separator is bidirectional

flow in either direction is permitted

The circulation of fully de-aerated water enables the equipment to operate under optimum conditions, free from noise, corrosion, localized or mechanical damage

Micro-bubbles, fusing with each other, increase in volume (get larger) until they become large enough to rise to the top where they are automatically released

Air Elimination and Vents

Pressure Rating
150 PSI
Application
Heating and Cooling System
Type
Micro-Bubble
Body Material
Brass
Temperature Rating
32 to 250 Deg F
End Connection
Soldered x Soldered
End to End Distance
3-1/16 Inch
Flow Rate
6 GPM
Applicable Standard
ICIM ISO 9001/2008, FM 21654, ANAB
