> 24010 FAN CONTROL CENTER

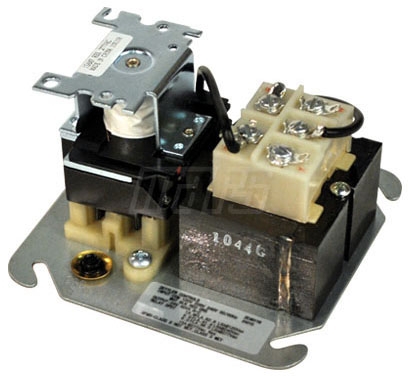

24010 FAN CONTROL CENTER
Item #:
94720
Manufacturer Item: 24010
Manufacturer:
MOTORS & ARMATURES INC
3/4 HP, 40 VA, 120/208/240 VAC Primary, 24 VAC Secondary, 50/60 Hz, 13.8 FLA/82.8 LRA at 120 VAC, 6.9 FLA/41.4 LRA at 240 VAC, DPDT, Relay/Transformer Fan Control Center
Line Voltage Connections Pre-Wired
Energy Limiting Class II Transformer Design
Color Coded Pre-Stripped Leads
Low Voltage Connections on Terminal Board
fan and limit controls
Type
AC Operated
Approval
UL
Contact Configuration
SPNO/SPNC
Contact Voltage Rating
120/240 Volt AC 60 Hertz
Terminal Type
Screw
Contact Current Rating
13.8 Amp (Full Load), 82.8 Amp (Locked Rotor) at 1
Mounting
4 Inch x 4 Inch Junction Box
