Home  >  HVAC Equipment  >  Ductless  >  Residential Ductless  > SVZ-KP12NA 12,000 MULTI

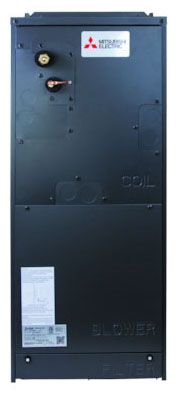

SVZ-KP12NA 12,000 MULTI POSITION AIR HANDLER DUCTED

Item #: 89604
Manufacturer Item: SVZ-KP12NA
Manufacturer: MITSUBISHI ELEC SALES INC
12000 BTU/Hr Cooling, 15000 BTU/Hr Heating, 208/230 VAC 1-Phase 3 A 940/1210 W, 448 CFM, 18 SEER/12.7 EER/12.1 HSPF, Black Galvanized Steel, R-410A, Mini-Split, Multi-Position, Ducted, 3-Speed, Air Handler Indoor Unit
89604

Ducted air handler provides a solution to cool and heat larger zones

Highly efficient completely enclosed EC motor

Selectable external static pressure: 0.30, 0.50 and 0.80 in.WG with 3 fan speeds at each static setting

1 inch R4.2 fiberglass free insulation reduces condensation and increases efficiency

Positive pressure cabinet with air leakage of less than 2.0% at 1.0 in. w.g. (Tested per ASHRAE Standard 193)

Unique blow through design allows simple coil cleaning when the blower is removed

Multi-position installation: horizontal (left or right), vertical (upflow)

Built-in humidifier control, ERV control and auxiliary heat control

AHRI Certified

Energy StarĀ® Rated

Residential Ductless

Cooling Capacity
12000 BTU/Hour
Frequency Rating
60 Hertz
Number of Phases
1
Voltage Rating
208/230 Volt AC
Weight
93 Pound
Approval
ETL (Canada and US)
Enclosure Finish
Galvanized, Black
Current Rating
3 Amp (Minimum Circuit Ampacity), 2.4 Amp Full Loa
Power Rating
940 Watt (Cooling), 1210 Watt at 47 Deg F (Heating
Operating Temperature
14 to 115 Deg F (Cooling), -4 to 75 Deg F (Heating
Type
Mini-Split, Multi-Position, Ducted, 3-Speed
Connection Type
Terminal Block
Temperature Control Type
Thermostat
Cooling Coefficient
3.6
Enclosure Material
Steel
