Home  >  HVAC Equipment  >  Ductless  >  Residential Ductless  > SLZ-KF15NA.TH 15,000 4-WAY

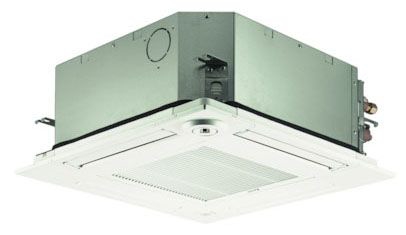

SLZ-KF15NA.TH 15,000 4-WAY CEILING CASSETTE LESS CONTROL

Item #: 89588
Manufacturer Item: SLZ-KF15NA.TH
Manufacturer: MITSUBISHI ELEC SALES INC
14100 BTU/Hr Cooling, 18000 BTU/Hr Heating, 208/230 VAC 1-Phase 0.4 A 1150/5100 W, 405 CFM Cooling/Heating, 19.8 SEER/12.2 EER/11.2 HSPF, Munsell 1.0Y 9.2/0.2, Ceiling Cassette Mount, R-410A, Mini-Split, Compact, Lightweight, 4-Way, 3-Speed, Heat Pump Indoor Unit
You must be logged in to order this item.
Log in here
89588

Ceiling-recessed cassette (24 Inch x24 Inch) ductless heat pump

Install SLZ in a drywalled ceiling (with an access panel for servicing) or in a 2 Foot x 2 Foot drop ceiling

Wide airflow pattern for excellent air distribution

Fresh air intake provided in the main body

Built-in drain condensate lift mechanism (lifts to 33 Inch)

kumo cloud® smart device app for remote access

Individual vane control

AHRI Certified

Residential Ductless

Cooling Capacity
14100 BTU/Hour
Frequency Rating
60 Hertz
Number of Phases
1
Voltage Rating
208/230 Volt AC
Weight
31 Pound
Approval
ETL (Canada and US)
Enclosure Finish
Munsell 1.0Y 9.2/0.2
Current Rating
0.4 Amp (Minimum Circuit Ampacity), 0.32 Amp Full
Power Rating
1150 Watt (Cooling), 5100 Watt at 47 Deg F (Heatin
Operating Temperature
14 to 115 Deg F (Cooling), -4 to 75 Deg F (Heating
Type
Mini-Split, Compact, Lightweight, 4-Way, 3-Speed
Installation
Ceiling Cassette Mount
Connection Type
Terminal Block
Temperature Control Type
Thermostat
Cooling Coefficient
3
