Home  >  HVAC Equipment  >  Ductless  >  Commercial-Ductless  > PLA-A12EA7R1.TH 12,000 P

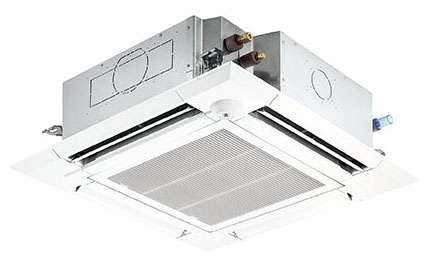

PLA-A12EA7R1.TH 12,000 P SERIES CEILING RECESSED

Item #: 89545
Manufacturer Item: PLA-A12EA7R1.TH
Manufacturer: MITSUBISHI ELEC SALES INC
12000 BTU/Hr Cooling, 208/230 VAC 1-Phase, 27 SEER/16.4 EER, R-410A, Air Conditioner Indoor Unit
You must be logged in to order this item.
Log in here
89545

Space-efficient ductless installation

Equipped with 3D i-see SensorTM for enhanced comfort and energy efficiency

Airflow settings for high and low ceiling applications

Individual vane settings for direct/indirect airflow control or variable airflow patterns

Knockouts for outside-air intake and branch-duct run

Filter indicator signal

Easy-to-clean, washable filter (optional high-efficiency filter available-requires multi-function casement)

Built-in condensate lift mechanism

Ideal for retail shops, classrooms, office spaces, conference centers, building lobbies and more

Energy Star® Rated

Commercial-Ductless

Approval
ETL (Canada and US)
Cooling Capacity
12000 BTU/Hour
Enclosure Finish
White Munsell
Frequency Rating
60 Hertz
Number of Phases
1
Voltage Rating
208/230 Volt AC
Weight
46 Pound
Power Rating
50 Watt (Motor), 730 Watt (Cooling)
Operating Temperature
80 Deg F Dry/67 Deg F Wet (Indoor), 95 Deg F Dry/7
Connection Type
Flared
Current Rating
1 Amp (MCA), 0.36 Amp (Fan Motor)
Type
Ceiling Cassette
