Home  >  HVAC Equipment  >  Ductless  >  Residential Ductless  > SEZ-KD15NA4R1.TH 15,000 M

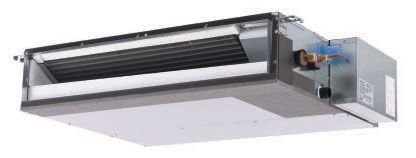

SEZ-KD15NA4R1.TH 15,000 M SERIES INDOOR DUCTED

Item #: 89131
Manufacturer Item: SEZ-KD15NA4R1.TH
Manufacturer: MITSUBISHI ELEC SALES INC
15000 BTU/Hr Cooling, 18000 BTU/Hr Heating, 208/230 VAC 1-Phase 1 A 1150/1440 W, 529 CFM Cooling/Heating, 19 SEER/13 EER/19 HSPF, Galvanized, Concealed Ceiling Mount, R-410A, Mini-Split, Compact, Horizontal Ducted, 3-Speed, Heat Pump Indoor Unit
You must be logged in to order this item.
Log in here
89131

Concealed horizontal-ducted unit for applications with short duct runs

Quiet operation

Built-in condensate lift mechanism

Only the intake-air grille and outlet vents are visible when using this ceiling-concealed indoor unit

The rest of the unit is conveniently hidden in the ceiling cavity, essentially leaving the ceiling and walls free of bulky looking devices and maintaining a high-class interior décor

AHRI Certified

Energy Star® Rated

Residential Ductless

Cooling Capacity
15000 BTU/Hour
Frequency Rating
60 Hertz
Number of Phases
1
Voltage Rating
208/230 Volt AC
Weight
54 Pound
Approval
ETL (Canada and US)
Enclosure Finish
Galvanized
Current Rating
1 Amp (Minimum Circuit Ampacity), 0.74 Amp Full Lo
Power Rating
1150 Watt (Cooling), 1440 Watt at 47 Deg F (Heatin
Operating Temperature
14 to 115 Deg F (Cooling), -4 to 75 Deg F (Heating
Type
Mini-Split, Compact, Horizontal Ducted, 3-Speed
Installation
Concealed Ceiling Mount
Connection Type
Terminal Block
Temperature Control Type
Thermostat
Cooling Coefficient
3.16
