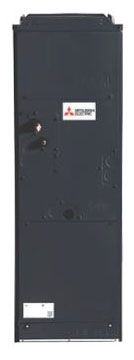

PVA-A42AA7 42,000 BTU MULTIPOSITION AIR HANDLER
Item #:
88855
Manufacturer Item: PVA-A42AA7
Manufacturer:
MITSUBISHI ELEC SALES INC
42000 BTU/Hr Cooling, 46000 BTU/Hr Heating, 208/230 VAC 1-Phase 5.63 A 4150 W, 3880 CFM, 18 SEER/10.1 EER, State Gray Powder Coated Steel, R-410A, Professional, Multi-Position, Ducted, 3-Speed, Air Handler Indoor Unit
You must be logged in to order this item.
Log in here
Log in here
Ducted air handler provides a solution to cool and heat large zones
Highly efficient totally enclosed ECM motor
Selectable external static pressure: 0.30, 0.50 and 0.80 in.WG with 3 fan speeds at each static setting
1 inch R4.2 fiberglass free insulation reduces condensation and boosts efficiency
Positive pressure cabinet with air leakage of less than 1.0% at 1.0 in.WG
Unique blow through design allows simple coil cleaning when the blower is removed
Multi-position installation: horizontal (left or right), vertical (up or down). For downflow configurations, the CMA-1 is recommended for proper management of condensate to prevent water blow-off in certain conditions
AHRI Certified
Commercial-Ductless
Approval
ETL (Canada and US)
Cooling Capacity
42000 BTU/Hour
Enclosure Finish
State Gray Powder Coated
Frequency Rating
60 Hertz
Number of Phases
1
Voltage Rating
208/230 Volt AC
Weight
172 Pound
Power Rating
4150 Watt
Operating Temperature
-40 to 115 Deg F
Connection Type
Terminal Block
Current Rating
5.63 Amp (Minimum Circuit Ampacity), 4.5 Amp Full
Type
Professional, Multi-Position, Ducted, 3-Speed
Temperature Control Type
Thermostat
Enclosure Material
Steel
