Home  >  Hydronics  >  Water Heaters  >  Residential Gas  > GS6-30-ORBTR 30 GALLON 32K

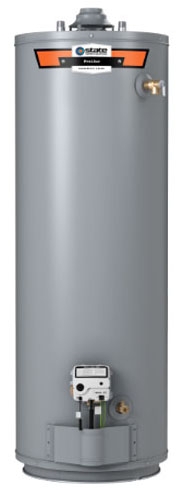

GS6-30-ORBTR 30 GALLON 32K BTU NG HTR BLANKETED KA-90 ANODE

Item #: 88617
Manufacturer Item: 100325807
Manufacturer: STATE INDUST%ORDER ENTRY
32000 BTU/Hr, 30 Gallon, Lead-Free, Natural, Tall, Commercial-Grade, Residential Gas Water Heater
88617

The internal microprocessor provides enhanced operating parameters and tighter differentials for precise sensing and faster heating response to optimize performance

Uses a thermopile to generate the power needed to operate the electronic gas control without requiring an external power source

The electronic gas control incorporates an LED status indicator that monitors system operation and service diagnostics

Lead-Free

Residential Gas

Applicable Standard
UBC, CEC, HUD, ASHRAE/IES 90.1, CSA, ANSIZ21.10.1,
Drain Valve Details
Solid Brass, Tamper Resistant, Enhanced Flow, Ball
Inclusions/Features
Intelligent Control Logic, Green Choice Gas Burner
Input Supply Rating
32000 BTU/Hour
Tank Capacity
30 Gallon
Tank Dimensions
16 Inch Diameter x 57 Inch Height
Tank Warranty
6 Year
Type
Tall, Commercial Grade
GPH Recovery
32 GPH at 90 Deg F
Inlet/Outlet Connection
3/4 Inch x 3/4 Inch
Gas Type
Natural
Ignition Type
Piezo Pushbutton
Relief Valve Details
T and P Relief Valve
Tank Height Including Draft Hood
60-1/2 Inch
Venting Type
Standard
Burner Type
Low NOx
Insulation Details
Non-CFC Foam
Gas Connection
1/2 Inch
