Home  >  HVAC Equipment  >  Residential  >  Geothermal Units-Residential  > GV61S3AAN 5 TON GEOTEC HEAT

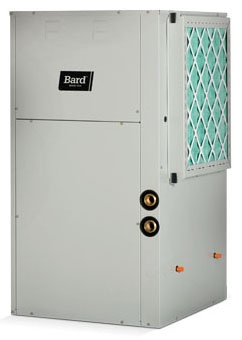

GV61S3AAN 5 TON GEOTEC HEAT PUMP CUPRO-NICKEL

Item #: 88320
Manufacturer Item: GV61S3AAN
Manufacturer: BARD MFG-GEOTHERMAL
208/230 VAC 60 Hz 1-Phase, 3/4 HP Blower, 60500/65500 BTU/Hr Cooling, 49000/62500 BTU/Hr Heating, 16.5/20.5 EER, 1600 CFM, R-410A, Vertical Mount, High Efficiency, Geothermal/Water Source Packaged Heat Pump
88320

The Bard GEOTEC Geothermal/Water Source Packaged Heat Pump Delivers Economical Year Round Comfort by Utilizing Natures Most Abundant and Efficient Solar Energy Collector the Earth

Simple Thermostatic Control Seamlessly Stages the Compressor and Indoor Airflow Rate Between Full and Part Load Capacity Operation without Cycling the Compressor

Copeland Step Capacity Scroll Compressors are Designed for Increased Efficiency, Quieter Operation and Improved Reliability for Longer Life

Protects System Against Moisture

Built-In Lockout Circuit Resets from the Room Thermostat

High Pressure Switch Provides Additional Protection for the System

Fluid Flow Switch Provided for Both Source and Load Coil to Assure Proper Flow for Safe Operation

High Efficiency Variable Speed ECM Blower Motor

ENERGY STAR® Qualified

Geothermal Units-Residential

Cooling Capacity
60500 BTU/Hour (Ground Loop), 65500 BTU/Hour (Grou
Frequency Rating
60 Hertz
Number of Phases
1
Voltage Rating
208/230 Volt AC
Current Rating
40 Amp (Minimum Circuit), 21.9/24.2 Amp at 230/208
Enclosure Material
20 Gauge Steel
Operating Temperature
45 to 75 Deg F (Ground Water), 25 to 110 Deg F (Gr
Approval
UL, CSA, ETL (Canada and US)
Power Rating
3/4 HP (Blower)
Type
High Efficiency
Enclosure Finish
Galvanized, Zinc Coated
Installation
Vertical Mount
Temperature Control Type
Thermostat
Connection Type
Circuit Breaker
