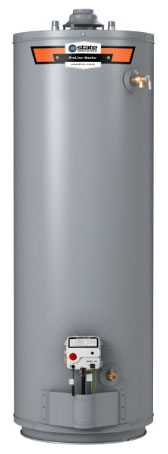

GW8-50-BRT 50 GALLON PROLINE MASTER NATURAL GAS HEATER

Item #: 88297
Manufacturer Item: GW8-50-BRT
Manufacturer: STATE INDUST%ORDER ENTRY
40000 BTU/Hr, 50 Gallon, Lead-Free, Propane, Tall, Commercial-Grade, Residential Gas Water Heater
88297

INTELLIGENT CONTROL LOGIC The internal microprocessor provides enhanced operating parameters and tighter differentials for precise sensing and faster heating response to optimize performance

Uses a thermopile to generate the power needed to operate the electronic gas control without requiring an external power source

The electronic gas control incorporates an LED status indicator that monitors system operation and service diagnostics

GREEN CHOICE® GAS BURNER Patented exo-friendly burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements of less than 40 ng/J

SELF CLEANING DIP TUBE Helps reduce lime and sediment buildup and maximizes hot water output

Made from long-lasting PEX cross-linked polymer

COREGARD ANODE ROD Our anode rods have a stainless steel core that extends the life of the anode rod allowing superior tank protection far longer than standard anode rods

ProLine® Master products have increased protection with either longer or multiple anodes depending on model

Lead-Free

Residential Gas

Applicable Standard
UBC, CEC, HUD, ASHRAE/IES 90.1, CSA, ANSI Z21.10.1
Drain Valve Details
Solid Brass, Tamper Resistant, Enhanced Flow, Ball
Inclusions/Features
Intelligent Control Logic, Green Choice Gas Burner
Input Supply Rating
40000 BTU/Hour
Tank Capacity
50 Gallon
Tank Dimensions
21 Inch Diameter x 57-1/4 Inch Height
Tank Warranty
8 Year
Type
Tall, Commercial Grade
GPH Recovery
41 GPH at 90 Deg F
Inlet/Outlet Connection
3/4 Inch x 3/4 Inch
Gas Type
Propane
Ignition Type
Piezo Pushbutton
Relief Valve Details
T and P Relief Valve
Tank Height Including Draft Hood
60-3/4 Inch
Venting Type
Standard
Burner Type
Low NOx
Insulation Details
Non-CFC Foam
Gas Connection
1/2 Inch
