Home  >  Hydronics  >  Water Heaters  >  Mobile home  > GS6-30-MHG 30GAL 35.5KBTU

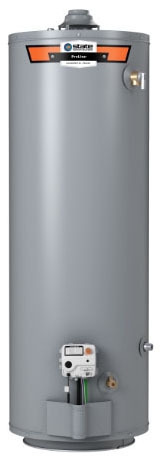

GS6-30-MHG 30GAL 35.5KBTU ATMOSPHER MFTD HOUSING HTR AL-1 ANODE

Item #: 88283
Manufacturer Item: GS6-30-MHG
Manufacturer: STATE INDUST%ORDER ENTRY
3/4", 35000 BTU/Hr Natural, 32000 BTU/Hr Liquid Propane, 30 Gallon, Lead-Free, Blue Diamond Glass Coated, Flammable Vapor Ignition, Atmospheric Vent, Mobile Home, Residential Natural/Liquid Propane Gas Water Heater
88283

Green Choice® Gas

Burner Patented Eco-Friendly Burner Design Reduces Nox Emissions

Coregard Anode Rod Anode Rods have a Stainless Steel Core that Extends the Life of the Anode Rod Allowing Superior Tank Protection Far Longer than Standard Anode Rods

Blue Diamond® Glass Coating Provides Superior Corrosion Resistance Compared to Industry Standard Glass Lining

Enhanced-Flow Brass Drain Valve

Lead-Free

Mobile home

Type
Mobile Home
Applicable Standard
CSA, UBC, CEC, HUD, ASHRAE/IENSA 90.1, EPCA
Burner Type
Low NOx
Drain Valve Details
Enhanced Flow Solid Brass, Tamper Resistant, Ball
Gas Connection
1/2 Inch Female Threaded
Gas Type
Natural/Liquid Propane
GPH Recovery
36 GPH at 90 Deg F
Ignition Type
Flammable Vapor
Inclusions/Features
Convertible Gas Control, Green Choice Gas Burner,
Inlet/Outlet Connection
3/4 Inch
Input Supply Rating
35000 BTU/Hour (Natural), 32000 BTU/Hour (Liquid P
Insulation Details
2 Inch Thickness Blanket
Relief Valve Details
CSA/ASME T and P Relief Valve Supplied
Tank Capacity
30 Gallon
Tank Dimensions
18 Inch Diameter x 58 Inch Height
Tank Height Including Draft Hood
61-1/2 Inch
Tank Warranty
6 Year Limited
Venting Type
Atmospheric
