Home  >  Hydronics  >  Water Heaters  >  Residential Gas  > GS6-75-HRVHTL 75GAL 76KBTU

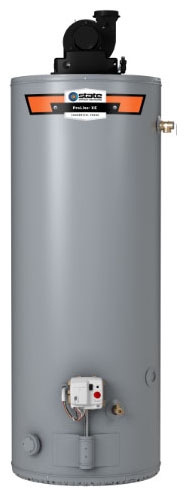

GS6-75-HRVHTL 75GAL 76KBTU LP EI PWR VENT HTR MG-2 ANODE

Item #: 88258
Manufacturer Item: GS6-75-HRVHTL
Manufacturer: STATE INDUST%ORDER ENTRY
76000 BTU/Hr, 75 Gallon, Lead-Free, Propane, Tall, Commercial-Grade, Residential Gas Water Heater
88258

3-POSITION ROTATABLE BLOWER OUTLET Our exclusive 3-position rotatable blower outlet adds flexibility for an easy installation

COREGARD ANODE ROD Our anode rods have a stainless steel core that extends the life of the anode rod allowing superior tank protection far longer than standard anode rods

BRASS DRAIN VALVE Uses a standard female hose fitting that allows for fast and easy draining during maintenance

Screwdriver slot features a 1/4 turn radius, for straight-through water flow and a quick and positive Shut-Off

Lead-Free

Residential Gas

Applicable Standard
CSA, ANSI Z21.10.1, CSA 4.1, AHRI
Drain Valve Details
Solid Brass, Tamper Resistant, Enhanced Flow, Ball
Inclusions/Features
Versatile Power Vent Design, Self-Cleaning Dip Tub
Input Supply Rating
76000 BTU/Hour
Tank Capacity
75 Gallon
Tank Dimensions
26 Inch Diameter x 61-1/4 Inch Height
Tank Warranty
6 Year
Type
Tall, Commercial Grade
GPH Recovery
80.4 GPH at 90 Deg F
Inlet/Outlet Connection
3/4 Inch Threaded x 3/4 Inch Threaded
Gas Type
Propane
Ignition Type
Electronic, Hot Surface
Relief Valve Details
T and P Relief Valve
Tank Height Including Draft Hood
70-5/8 Inch
Venting Type
Power
Burner Type
Low NOx
Insulation Details
2 Inch Thickness, Foam
Tank Material
Glass Coating
Options
Relief Valve
