Home  >  Hydronics  >  Water Heaters  >  Residential Gas  > GS6-40-YRVIT 40GAL 50KBTU

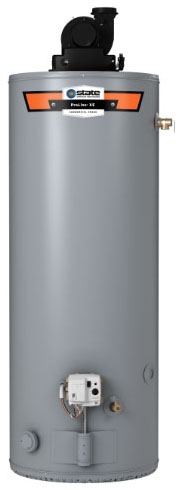

GS6-40-YRVIT 40GAL 50KBTU NAT EI PWR VENT HTR KA90-1

Item #: 88252
Manufacturer Item: 100114736
Manufacturer: STATE INDUST%ORDER ENTRY
3/4" NPT, 50000 BTU/Hr, 40 Gallon, Lead-Free, Blue Diamond Glass Coated, Hot Surface Ignition, Power Vent, Tall, Residential Natural Gas Water Heater
88252

All Models Feature an Exclusive 3-Position Rotatable Blower Outlet which Adds Flexibility

Protected Sensor that Detects the Presence of Flammable Vapors and Automatically Disables the Burner to Prevent Ignition

Air Intake Snorkel Elevates the Inlet Location of Combustion Air to Prevent Flammable Vapors from Entering the Sealed Combustion Chamber

Reduced NOx Emissions Comply with Air Quality Management District Regulations

Built-In Heat Traps on the Water Inlet and Outlet Reduce the Amount of Heat Lost through Piping

Dip Tube Reduces Lime and Sediment Buildup and Maximizes Hot Water Output, Made from Long Lasting PEX Cross-Linked Polymer

Blue Diamond Glass Coating Provides Superior Corrosion Resistance Compared to Industry Standard Glass Lining

State-Of-The-Art Electronic Gas Control Provides More Precise Temperature Control

Drain Valve Uses a Standard Female Hose Fitting that Allows for Fast and Easy Draining During Maintenance

All Models Approved for Installation from Sea Level to 10100 Ft Elevation

2" Pipe Vents up to 50 Equivalent Feet, 3" Pipe Vents up to 125 Equivalent Feet, 4" Pipe Vents up to 180 Equivalent Feet

Energy StarĀ® Qualified

AHRI Certified

Lead-Free

Residential Gas

Applicable Standard
ANSI Z21.10.1/CSA 4.1/ANSI Z21.10.3/CSA 4.3, AHRI,
Drain Valve Details
Enhanced Flow Solid Brass, Tamper Resistant, Ball
Inclusions/Features
Versatile Power Vent Design, Self-Cleaning Dip Tub
Input Supply Rating
50000 BTU/Hour
Tank Capacity
40 Gallon
Tank Dimensions
20 Inch Diameter x 59-1/4 Inch Height
Tank Warranty
6 Year Limited
Type
Tall
GPH Recovery
56 GPH at 90 Deg F
Inlet/Outlet Connection
3/4 Inch Threaded
Gas Type
Natural
Ignition Type
Hot Surface
Tank Height Including Draft Hood
68-1/2 Inch
Venting Type
Power
Insulation Details
Foam
Energy Saver Conformance
Yes
