Home  >  Hydronics  >  Water Heaters  >  Commercial Electric  > CSB-120-54-SFE 119 GAL 54KW

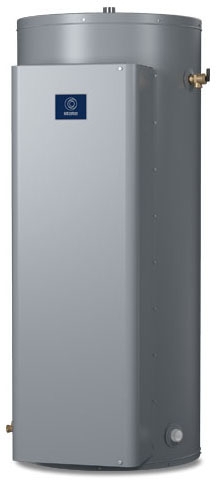

CSB-120-54-SFE 119 GAL 54KW 208V 9 ELMN STATE COMM ELEC HTR

Item #: 88248
Manufacturer Item: CSB-120-54-SFE
Manufacturer: STATE COMMERCIAL
1-1/4" x 1-1/4", NPT x NPT, 208/240/277/480 VAC 1-Phase, 6000 W, 119 Gallon, 9-Element, Commercial Electric Water Heater
88248

Incoloy Elements provide long life and superior scaling resistance

Glasslined Tank specially developed for water heater use

Fusing-protects all elements, thermostats and internal wiring circuits against excess current flow

Surface mounted thermostats

Simplified circuitry, color coded for ease of service

Two anode rods for maximum corrosion protection

Lead-Free

Commercial Electric

Applicable Standard
UL, CSA, AHRI
Inclusions/Features
Fusing, Factory Installed Terminal Block, Temperat
Inlet/Outlet Connection
1-1/4 Inch Threaded x 1-1/4 Inch Threaded
Number of Elements
9
Power Rating of Elements
6000 Watt
Tank Dimensions
29-1/2 Inch Diameter x 62-1/4 Inch Height
Drain Valve Details
Brass
Input Supply Rating
208/240/277/480 Volt AC 1-Phase/3-Phase
Insulation Details
Foam
Relief Valve Details
ASME T and P Relief Valve
Tank Capacity
119 Gallon
Tank Warranty
3-Year Limited
Thermostat Setting
120 to 181 Deg F
Thermostat Type
Surface Mounted
ASME Code
Yes
GPH Recovery
158 GPH at 140 Deg F
Tank Material
Glass Lined
Number of Anode Rods
2
Options
Manifold Kit
