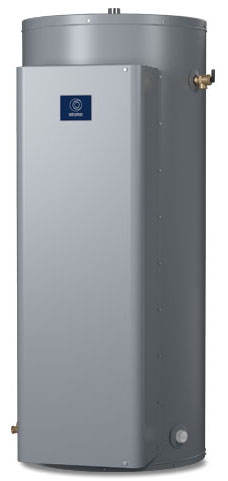

CSB-82-18-SFE 80 GAL 18KW 240V 3 ELMNT STATE COMM ELEC HTR
Item #:
88204
Manufacturer Item: CSB-82-18-SFE
Manufacturer:
STATE COMMERCIAL
1-1/4" NPT x 1-1/4" NPT, 6000 W, 80 Gallon, 53 GPH at 140 Deg F, Glasslined, Commercial Electric Water Heater
Incoloy Elements provide long life and superior scaling resistance
Glasslined Tank specially developed for water heater use
Fusing-protects all elements, thermostats and internal wiring circuits against excess current flow
Surface mounted thermostats
Simplified circuitry, color coded for ease of service
Two anode rods for maximum corrosion protection
Cabinet has bonderized undercoat with baked enamel finish
Bottom inlet and top outlet opening
Single panel control box
Foam insulation reduces costly heat loss
Commercial Electric
Applicable Standard
UL, CSA, AHRI, ASME
Inclusions/Features
Fusing, Factory Installed Terminal Block, Temperat
Inlet/Outlet Connection
1-1/4 Inch Threaded x 1-1/4 Inch Threaded
Number of Elements
3
Power Rating of Elements
6000 Watt
Tank Dimensions
25-1/2 Inch Diameter x 60-1/4 Inch Height
Drain Valve Details
Brass
Input Supply Rating
208/240/277/480 Volt AC 1-Phase/3-Phase
Insulation Details
Foam
Relief Valve Details
T and P Relief Valve
Tank Capacity
80 Gallon
Tank Warranty
3 Year
Thermostat Setting
120 to 181 Deg F
Thermostat Type
Surface Mounted
ASME Code
Yes
GPH Recovery
53 GPH at 140 Deg F
Tank Material
Glasslined
Number of Anode Rods
2
