Home  >  Hydronics  >  Water Heaters  >  Residential Gas  > GS6-40-YBDS-L 40GAL 38KBTU

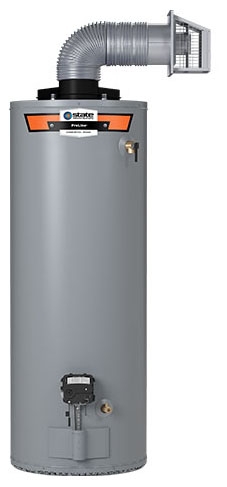

GS6-40-YBDS-L 40GAL 38KBTU NAT DIRECT VENT HTR MG-A ANODE

Item #: 88195
Manufacturer Item: 100210125
Manufacturer: STATE INDUST%ORDER ENTRY
38000 BTU/Hr, 40 Gallon, Lead-Free, Natural, Tall, Commercial-Grade, Residential Gas Water Heater
88195

The internal microprocessor provides enhanced operating parameters and tighter differentials for precise sensing and faster heating response to optimize performance

Uses a thermopile to generate the power needed to operate the electronic gas control without requiring an external power source

he electronic gas control incorporates an LED status indicator that monitors system operation and service diagnostics

Patented eco-friendly burner design

Makes lighting pilot fast and easy with one-hand push-button spark ignition

Factory-installed for faster installation

Uses a standard female hose fitting that allows for fast and easy draining during maintenance

Lead-Free

Residential Gas

Applicable Standard
UBC, CEC, HUD, ASHRAE/IES 90.1, CSA, ASME, FVIR
Drain Valve Details
Solid Brass, Tamper Resistant, Enhanced Flow, Ball
Inclusions/Features
Intelligent Control Logic, Green Choice Gas Burner
Input Supply Rating
38000 BTU/Hour
Tank Capacity
40 Gallon
Tank Dimensions
22 Inch Diameter x 49-3/4 Inch Height
Tank Warranty
6 Year
Type
Tall, Commercial Grade
GPH Recovery
41 GPH at 90 Deg F
Inlet/Outlet Connection
3/4 Inch Male Threaded x 3/4 Inch Male Threaded
Gas Type
Natural
Ignition Type
Electronic, Push Button Piezo
Relief Valve Details
T and P Relief Valve
Tank Height Including Draft Hood
64 Inch
Venting Type
Direct
Burner Type
Low NOx
