Home  >  HVAC Equipment  >  Ductless  >  Residential Ductless  > SVH09SA-0 9,000 BTU 115V

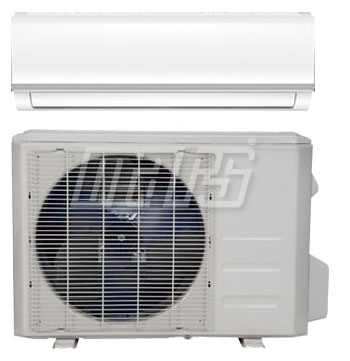

SVH09SA-0 9,000 BTU 115V 15 SEER SINGLE ZONE HP INVERTER

Item #: 87812
Manufacturer Item: SVH09SA-0
Manufacturer: HEAT CONTROLLER INC
9000 BTU/Hr Cooling, 9800 BTU/Hr Heating, 115 VAC 60 Hz 1-Phase, 15.2 SEER/10 EER/9 HSPF, R-410A, Heat Pump
You must be logged in to order this item.
Log in here
87812

Super Efficient

Whisper Quiet-High tech fan in the indoor unit delivers balanced air flow

Temperature Compensation Indoor unit adjusts automatically as needed to eliminate stratification between ceiling and floor temps

Auto Swing Continually adjusts air flow direction for a gentle, breeze-like effect

Multiple Modes

Auto Operation Automatically adjusts to maintain a constant temperature/humidity level

Superior Filtration

Leak Detection Signals if unit begins losing refrigerant charge

Auto Restart Reverts to the last setting following a power failure

Auto Defrost On heat pump models

Also crankcase heater to keep oil warm and reduce the need for defrosting

Residential Ductless

Cooling Capacity
9000 BTU/Hour (Water Loop)
Frequency Rating
60 Hertz
Number of Phases
1
Voltage Rating
115 Volt AC
Weight
87.1 Pound
Approval
UL (Canada and US), ETL (Canada and US)
Current Rating
8 Amp (Cooling), 8.6 Amp (Heating), 15 Amp (MCA),
Operating Temperature
5 to 86 Deg F (Heating), 32 to 122 Deg F (Cooling)
Type
1-Zone, Ductless, Indoor, Outdoor
Connection Type
Flared
