Home  >  Hydronics  >  Boilers  >  Residential Cast Iron  > 308BNI-G 245,000 NAT EI WTR

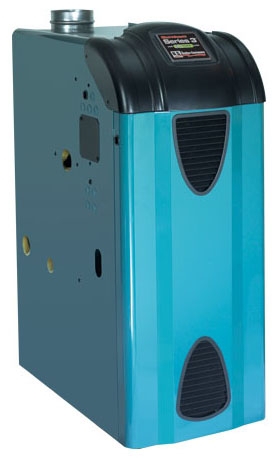

308BNI-G 245,000 NAT EI WTR SERIES 3 Boiler

Item #: 87419
Manufacturer Item: 308BNI-G
Manufacturer: US BOILER COMPANY, INC.
245000 BTU/Hr, 7 Gallon, Cast Iron, Chimney Vented, Residential Natural Gas Boiler
87419

Time proven cast iron design for durability and reliability

Optimum venting flexibility for homes with existing chimneys

Industry standard tapping locations, allows easy, direct replacement for thousands of existing boiler installations

Solid, reliable, American-made cast iron heat exchanger, designed to promote turbulent water flow within the section for efficient heat transfer

Consists of the Intelligent Hydronic Control and IQ Option Panel

Intuitive self-diagnostics

Combines high limit, relay and ignition functions into a single module

Two customizable integrated switching relays for easy addition of additional heating zone or indirect water heater

Energy saving thermal purge, which works by circulating residual warm water (140 Deg or above) in the heating system before firing the boiler

Enables the easy plug and play installation of optional features such as outdoor reset, LWCO and high limit

Limited Lifetime Warranty

Residential Cast Iron

AFUE Rating
84 Percent
AGA Input Rating
245000 BTU/Hour
Applicable Standard
AHRI, ASME H, ETL (Canada and US)
Boiler Dimensions
27-3/4 Inch Width x 33 Inch Depth x 41 Inch Height
Boiler Material
Cast Iron
DOE Heating Capacity
205000 BTU/Hour
Gas Connection
3/4 Inch
Gas Type
Natural
Ignition Type
Electronic, Spark
Inclusions/Features
Integrated Draft Diverter, Damper And Connector
Options
Energy Saving Control Package, LCD Touch Screen, 5
Return Connection
1-1/4 Inch
Supply Connection
1-1/4 Inch
Type
Chimney Vented
Water Content
7 Gallon
Warranty
Lifetime Limited
Relief Valve Details
3/4 Inch
