Home  >  HVAC Equipment  >  Specialty HVAC  >  PTAC  > PDH15R5SG 14500 BTU 5KW

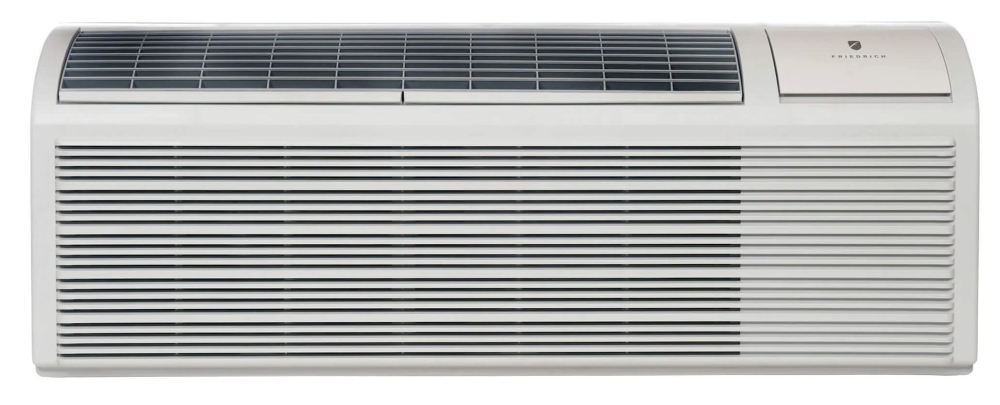

PDH15R5SG 14500 BTU 5KW 265V PTAC HEAT PUMP - R410A

Item #: 86971
Manufacturer Item: PDH15R5SG
Manufacturer: FRIEDRICH PTAC
14500 BTU/Hr Cooling, 13300 BTU/Hr Heating, 265 VAC 1-Phase, 10.4 EER/3.1 COP, R-410A, PTAC Heat Pump

Durable Construction-Superior materials and design reduce sound levels and improve overall guest satisfaction. Galvanized zinc coated steel wall sleeve and steel base pan undergo an 11-step preparation process, are powder coated with a polyester finish and are oven-cured at high temperature for exceptional durability. Stainless Steel endplates reduce corrosion of the outdoor coil

Sound Reduction Technology-Friedrich PTACs come standard with two permanently lubricated fan motors for added durability and reduced sound levels indoors. Units also have a quiet, efficient rotary compressor mounted with vibration isolators to keep the compressor running smoothly and quietly. High-density insulation and steel inner wall block outdoor noise

Energy Efficiency-Friedrich PTACs feature a super-efficient refrigeration design with EERs up to 13.0 and COP up to 3.6 Energy efficient heat pump models are also available in our complete line

Warranty and Support-Friedrichs industry leading warranty features 2-year full warranty on parts and labor and 5-year limited warranty. Our nationwide service network and U.S.-based Friedrich expert technical team ensures you get fast, knowledgeable service

Comfort and Convenience-Intuitive unit controls are user friendly with easy-to-read LED display that can show either set point or actual room temperature as selected by owner. Dehumidification removes moisture in cool mode to improve comfort and reduce the chance of mold and mildew growth

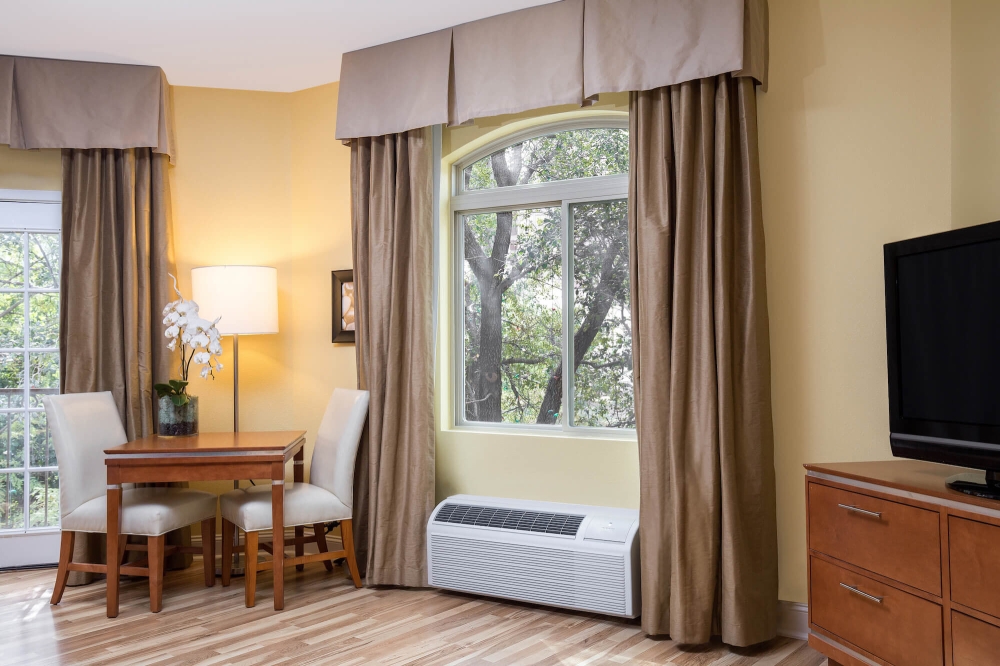

Maintenance and Installation-Modular product design ensures easy access to key components for cleaning and repairs, including washable, lift-out air filters. Surehold Front Cover System® securely attaches the front each time. Unit may be installed low to the floor

PTAC

Cooling Capacity
14500 BTU/Hour
Current Rating
5.4 Amp, 21.6 Amp Locked Rotor, 5.05 Amp Rated Loa
Frequency Rating
60 Hertz
Number of Phases
1
Power Rating
1390 Watt (Cooling), 1255 Watt (Heating)
Voltage Rating
265 Volt AC
Weight
122 Pound
Approval
UL (Canada and US), DCC
Cooling Coefficient
3.1 COP
