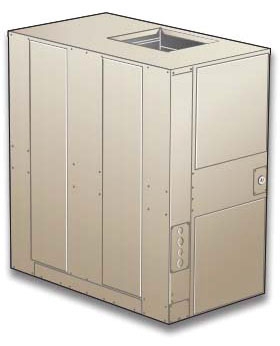

ELA120S4D-1Y 230V 3PH 10T AIR HANDLER 21B41

Refrigeration System - Multi-Circuit, Copper Tube Coil Extra large surface provides maximum cooling efficiency, excellent heat transfer and low air resistance

Precise circuiting gives uniform refrigerant distribution

Refrigeration System - Coil is constructed of precisely spaced ripple edged aluminum fins fitted to durable seamless, rifled copper tubes

Rifled tubing provides enhanced heat transfer which results in maximum coil performance when combined with fin design

Fins are strengthened to resist bending and are equipped with collars that grip tubing for maximum contact area

Flared tubing connections and silver soldering provide tight, leak-Proof joints

Long life copper tubing is corrosion-resistant and easy to field service

Coil is thoroughly factory tested under high pressure to ensure leak-Proof construction

Expansion Valve

Refrigerant Piping and Drain Connections - Refrigerant line inlets (knockouts) are provided on both sides of the cabinet

Refrigerant lines require sweat connections and are made internal to the cabinet

Condensate drain outlet extends outside the cabinet for ease of connection. Condensate drain can be relocated to other side of cabinet and can be repositioned for horizontal air flow applications

Control Box - Control box located in separate compartment in unit cabinet

Low voltage terminal strip factory installed

Blower contactor furnished and factory installed in control box

Cabinet - Cabinet is constructed of Heavy Gauge, pre-painted steel for superior rust and corrosion protection

Cabinet is completely lined with thick fiberglass insulation resulting in quiet and efficient operation

Closed-cell foam on top mullion between the blower and coil section reduces heat transfer through cabinet and prevents moisture build-up on outside of cabinet

Supply and return air duct flanges are furnished for field installation. See dimension drawings

Service access is provided on three sides of unit

Large removable panels provide complete service access on one side of unit

Electrical inlets are conveniently located in the cabinet

Drain Pan - Deep, corrosion resistant plastic drain pan

Reversible drain pan allows for drain outlets on either end of cabinet and can be repositioned for horizontal air flow applications

Drain pan is removable from either side in both horizontal and vertical applications

Blow-off baffle and extended drip shield collects condensate from the coil and directs it to the drain pan
