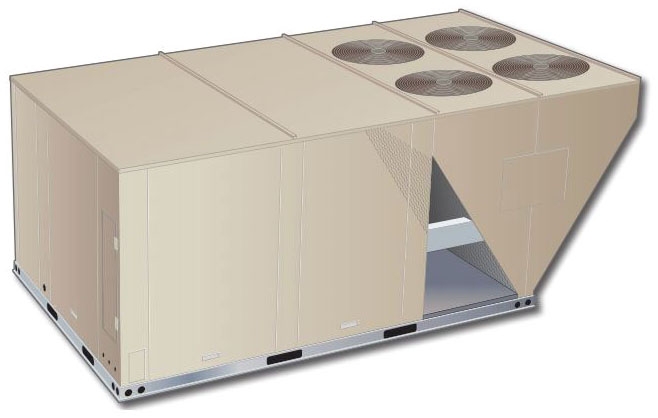

KCB180S4BN-Y BV446 230V 3PH 15T BELT DR PKG AC

Cooling System-Designed to maximize sensible and latent cooling performance at design conditions

R-410A Refrigerant-Non-chlorine based

Ozone-friendly

Single Speed Scroll Compressor-High performance, reliability and quiet operation

Resiliently mounted on rubber grommets for quiet operation

Compressor Crankcase Heater-Protects against refrigerant migration that can occur during low ambient operation

Thermal Expansion Valve-Assures optimal performance throughout the application range

Removable element head

High Pressure Switch-Protects the system from high pressure conditions

Filter/Drier-High capacity filter/drier protects the system from dirt and moisture

Freezestat-Protects the evaporator coil from damaging ice build-up due to conditions such as low/no air flow or low refrigerant charge

Outdoor Coil Fan Motor-Thermal overload protected

Totally enclosed

Power Entry-Electrical lines can be brought through the unit base or through horizontal access knock-outs

Insulation-Fully insulated with non-hygroscopic fiberglass insulation

Unit base is fully insulated

Base insulation serves as an air seal to the roof curb, eliminating the need to add a seal during installation

Cabinet-Heavy-gauge steel panels

Two-layer enamel paint finish

Full perimeter heavy-gauge galvanized steel base rail

Base rails have rigging holes

Three sides of the base rail have forklift slots

Raised edges around duct and power entry openings in the bottom of the unit for water protection
