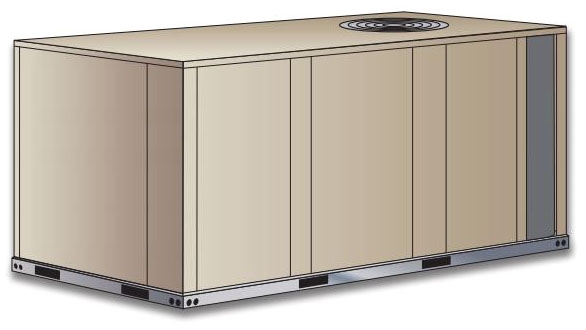

KCB036S4DN-G AZ095 14 SEER 460V 3PH 3T DIRECT DR PKG AC

R-410A Refrigerant-Environmentally friendly

Scroll Compressors-Single speed scroll compressors are furnished on all models

Eco-Last Coil System (092-120 Models Only)-Smaller, lighter condenser coil

Dehumidification System (Standard Efficiency Models Only)-Patented system allows for independent control of temperature and humidity, providing enhanced comfort control

High Pressure Switches-Protect compressor

Isolated Compressor Compartment-Allows performance check during normal compressor operation without disrupting airflow

Independent Outdoor Fan Motor Mounts-Allows for easy and efficient service access without removing the top panel

Constant Air Volume (CAV) or Single Zone VAV Supply Fan Blower Option-Allows constant or multi-staged air delivery

Downflow or Horizontal Airflow-Easy field conversion

Two Fork Lift Slots on Three Sides-Easy to pick up and transport units from almost any angle

Corrosion Resistant Removable, Reversible Drain Pan-Provides application flexibility, durability and improved serviceability

Thermostatic Expansion Valves (High Efficiency, 150S Models and all Standard Efficiency Models with Dehumidification )-Provide peak cooling performance across the entire application range

MERV 8 or MERV 13 Filters-Available as field installed option, provide an enhanced level of indoor air quality and can help the building qualify for additional LEED credits

Common Components-Many maintenance items are standard throughout the entire product line, reducing the need to carry different parts to the job or maintain in inventory
