Home  >  HVAC Equipment  >  Residential  >  Gas Furnaces  > 80G2UH110CV20 80% 110K 5T

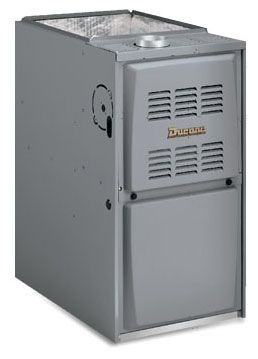

80G2UH110CV20 80% 110K 5T UPFLOW/HORIZ FURNACE 2 STAGE VARIABLE SPEED

Item #: 84415
Manufacturer Item: 80G2UH110CV20
Manufacturer: DUCANE HEATING
110000 BTU/Hr Heating, 4 Ton Cooling, 120 VAC 60 Hz 1-Phase, 12.8 A, 80% AFUE, Variable Speed Motor, 2-Stage, Upflow/Horizontal, Gas Furnace
84415

80% AFUE rating means the unit uses less energy than older, less efficient furnaces

Variable speed motor starts up slowly and then quietly accelerates to keep temperature and humidity perfectly controlled, while helping you save money on energy costs

Two-stage operation adjusts heat output based on indoor and outdoor temperatures to optimize comfort and energy usage

Robust aluminized steel heat exchanger is crimped, not welded, for increased durability and safety when burners are ignited

Crimped no-weld aluminized clam shell heat exchanger construction

Standardized widths for easy coil fit

Easily removable slide-out blower design

Self diagnostics saves last 5 fault codes regardless of power interruption

Zero step horizontal conversion

Rotatable draft inducer for venting flexibility

Gas Furnaces

Type
2-Stage, Upflow/Horizontal
Btu per Hour
110000 (Input), 87000 (Output)
Inclusion/Features
Left or Right Utility Connection, Removable Floor
Capacity
2094 CFM (Heating) at 0 to 0.5 Inch WC, 2011 CFM (
Control Type
40 Volt Amp Transformer
