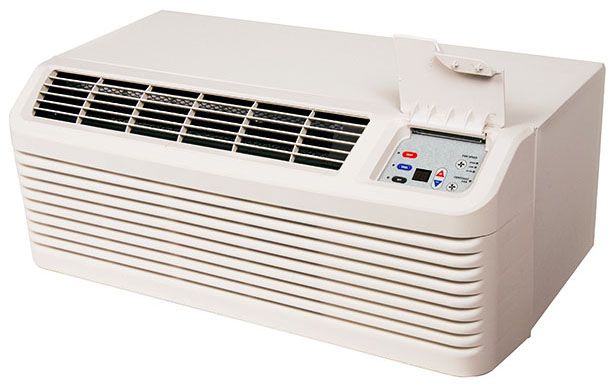

PTH153G35AXXX 14000 BTU 208 230V 3.5KW PTAC HEAT PUMP - R410A

Energy Efficiencies - With EERs up to 13.1 and COPs up to 3.6, our unit's high efficiencies may qualify you for many of the rebates offered by electrical power companies

Quiet Operation - Our PTAC has been redesigned to be the quietest PTAC we've ever built

The unit's state-of-the-art design and construction provide a quiet environment, allowing guests to enjoy peaceful, sleep-filled nights - Two fan motors (indoor/outdoor), Indoor tangential fan for quiet operation and STC of 28

Increased Dehumidification Capacity - Maintain lower humidity levels in rooms while cooling them without the need for expensive add-ons

As a result, guests feel more comfortable at higher temperatures, thus reducing cooling costs

Seven-Button Touch Pad - Provides complete control to guests for in-room comfort while maintaining energy efficiency

100% Run Tested - All units are 100% run tested at our plant in Fayetteville, TN, including leak checks during manufacturing and again prior to shipment at the warehouse

7-5/8 Inch Unit Front Depth - Enhance valuable room space with our slim unit front, which has a sleek 7-5/8 Inch depth, one of the shallowest silhouettes in the industry today

In addition, to inhibit guest-tampering, the front can be secured to the chassis with a hidden screw

Easy Pull-Out Filters - Our filters are washable and easy to maintain

Filter Dryer for Sealed System Refrigerant - Standard in all units to protect the compressor and lengthen the life of the unit by removing moisture and preventing acid formation

Condensate Dispersion System - Our condensate dispersion system removes condensate from indoor cooling operation by throwing water directly on to the outdoor coil for rapid evaporation and increased cooling efficiencies

The slinger ring on the new, enhanced fan draws water up and into the fan blades

This water is then atomized and evaporated into the atmosphere through the condenser

Increased surface area from the coil allows more water to be evaporated on the sides of the coils and helps to minimize condensate run-off

Front Desk Control - Each unit comes equipped with the EDEN control and energy management software. Using the EDEN software and optional RF Antenna, all units can be wirelessly connected to a central hub for enhanced energy savings and diagnostics

Amana brand PTACs also have a low-voltage interface capability with a field-supplied front-desk ON/OFF switch (See inside front cover)

Room Freeze Protection - When the unit senses temperatures of 40 Deg F or below, the unit activates the fan motor and either the electric resistance heater or the hydronic heater

Easy-to-use Controls - No complex controls to confuse your guests and create phone calls for your manager

Controls are easy to read, understand and activate

Our new 7-button control panel provides guests with complete control of the unit for their in-room comfort while maintaining overall energy efficiency

Easy to Service with On-Board LED Diagnostics - The main components are easily serviced and there is no guessing to determine the problem with our easy-to-read diagnostics

Stonewood Room Front: Our Stonewood room front - strikes the balance between attractive styling and practical design

Distinctive contours and a modern appearance enhance the character of even the most luxurious room, while the sleek 7-5/8 Inch depth maximizes usable space for your guests

Remote Thermostat Control - When the Eden wireless remote thermostat (DS01G, sold separately) is set up, both the remote thermostat and unit control panel continue to control the unit, providing flexibility and home-like system control

Installation requires no more than pressing two buttons

No need to run wires or make electrical connections

Zero Floor Clearance - The unit can be installed flush to a finished floor, if desired (Some accessories do not have zero clearance)
