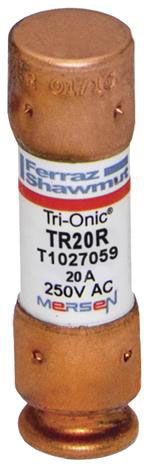

81036 20A 250V TR CARTRIDGE FUSE
Item #:
76799
Manufacturer Item: TR20R
Manufacturer:
MOTORS & ARMATURES INC
250 VAC, 160 VDC, 20 A, 200 kA AC/20 kA DC, Ferrule Terminal, Dual Element, Time Delay, Class RK5, Cartridge Fuse
Time-delay
Current-limiting
AC and DC rated
Optional solid state SmartSpot blown fuse indicator
Time-delay for motor start-ups and transformer inrush currents without nuisance opening
Current-limiting for low peak let-thru current
Rejection-style design prevents replacement errors (when used with recommended fuse blocks)
Easy-to-read label for quick brand recognition and replacement
Metal-embossed date and catalog number for traceability and lasting identification
Fiberglass body provides dimensional stability in harsh industrial settings
High grade silica filler ensures fast arc quenching and high current limitation
RoHS Compliant
fuses
Approval
UL, CSA
Voltage Rating
250 Volt AC 50/60 Hertz, 160 Volt DC
Characteristics
Time Delay, Dual Element
Current Rating
20 Amp
Interrupting Rating
200 Kiloamp (AC), 20 Kiloamp (DC)
Type
Class RK5
Length
2 Inch
Diameter
9/16 Inch
Terminal Type
Ferrule
