Home
>
HVAC Service Parts
>
Heating Parts Service
>
Control Boards-Heating Parts Service
> 50A56-956 HSI INTEGRATED

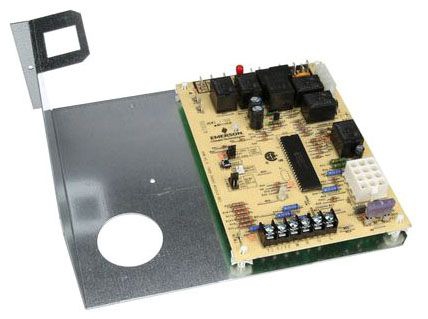

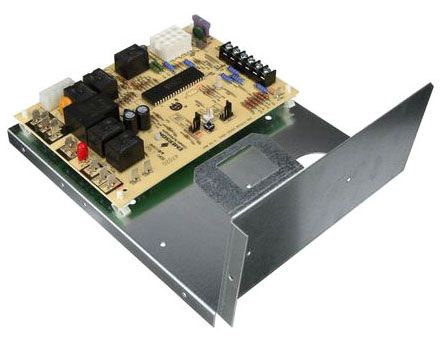

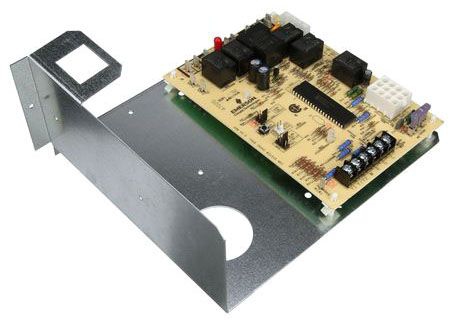

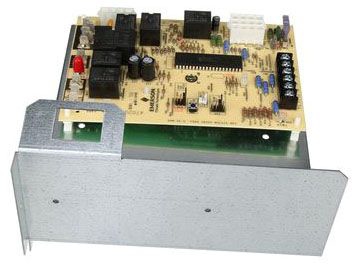

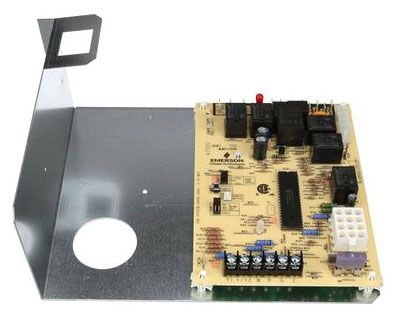

50A56-956 HSI INTEGRATED FURNACE CONTROL KIT
Item #:
75865
Manufacturer Item: 50A56-956
Manufacturer:
WHITE-RODGERS/COPELANDCOMFORT
25 VAC 50/60 Hz, 0.45 A, 0 Sec Prepurge, 7 Sec Ignition Trial, Hot Surface Igniter, 1-Stage, Integrated, 3-Fan Speed, Ignition Furnace Control Kit
System Diagnostic LED with Fault Recall
Twinning Connection
Fused to Protect Low Voltage System Transformers
Selectable Continuous Fan Speed
2-Stage Cooling Y2 Input
Control Boards-Heating Parts Service
Type
1-Stage, Integrated, 3-Fan Speed
Temperature Rating
-40 to 186 Deg F
Application
Furnace
Valve Rating
1.5 Amp at 25 Volt AC 50/60 Hertz
Ignition Source
Hot Surface Igniter
Ignition Trial Time
7 Second
Fuel Type
Natural, Manufactured, Mixed, Liquefied Petroleum
Flame Failure Response Time
2 Second
Ignition Sequence
2
Power Rating
25 Volt AC 50/60 Hertz, 0.45 Amp
Prepurge Time
0 Second
