Home
>
HVAC Service Parts
>
Heating Parts Service
>
Control Boards-Heating Parts Service
> 21D83M-843 SNG STG MODULE

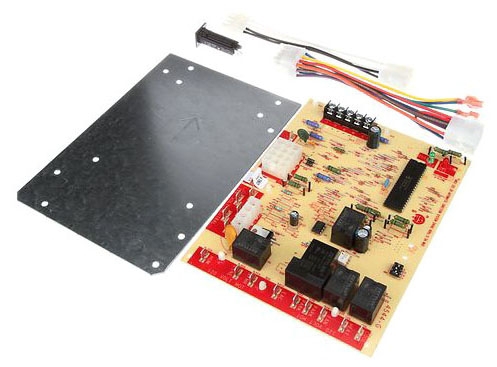

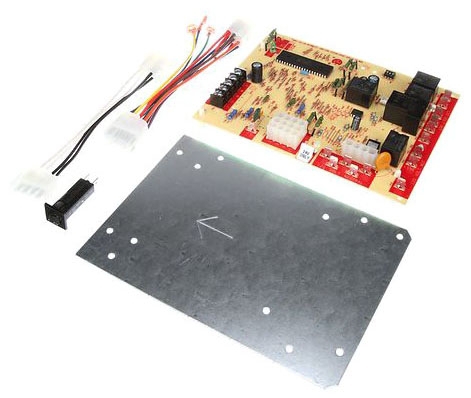

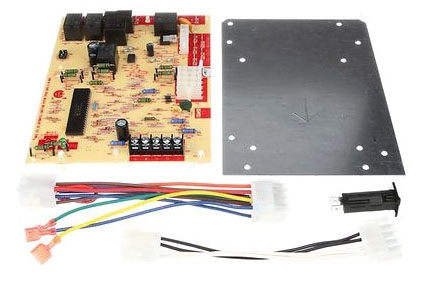

21D83M-843 SNG STG MODULE KIT FOR NITRIDE INTEGRATED FURNACES
Item #:
75838
Manufacturer Item: 21D83M-843
Manufacturer:
WHITE-RODGERS/COPELANDCOMFORT
25 VAC 50/60 Hz, 0.45 A, 15 Sec Prepurge, 4 Sec Ignition Trial, Hot Surface Igniter, 1-Stage, Integrated, 3-Fan Speed, Ignition Furnace Control Kit
Controls Gas Valve, Igniter, Blower, Inducer, Humidifier and Air Cleaner
Diagnostic LED Indicators Streamline Installation and System Troubleshooting
120 Volt Air Cleaner Output and 120 Volt Humidifier Output up to 1 Amp Max
Replaceable Automotive Style Fuse
Control Boards-Heating Parts Service
Type
1-Stage, Integrated, 3-Fan Speed
Temperature Rating
-40 to 175 Deg F
Application
Furnace
Valve Rating
1.5 Amp at 25 Volt AC 50/60 Hertz
Ignition Source
Hot Surface Igniter
Ignition Trial Time
4 Second
Fuel Type
Natural, Manufactured, Mixed, Liquefied Petroleum
Flame Failure Response Time
2 Second
Ignition Sequence
4
Flame Sense Type
Remote
Approval
CSA (Canada and US)
Power Rating
25 Volt AC 50/60 Hertz, 0.45 Amp
Prepurge Time
15 Second
