Home  >  Thermostats and IAQ  >  Thermostats  >  Digital Programmable  > 1F95-1291 BLUE 7 DAY MULTI

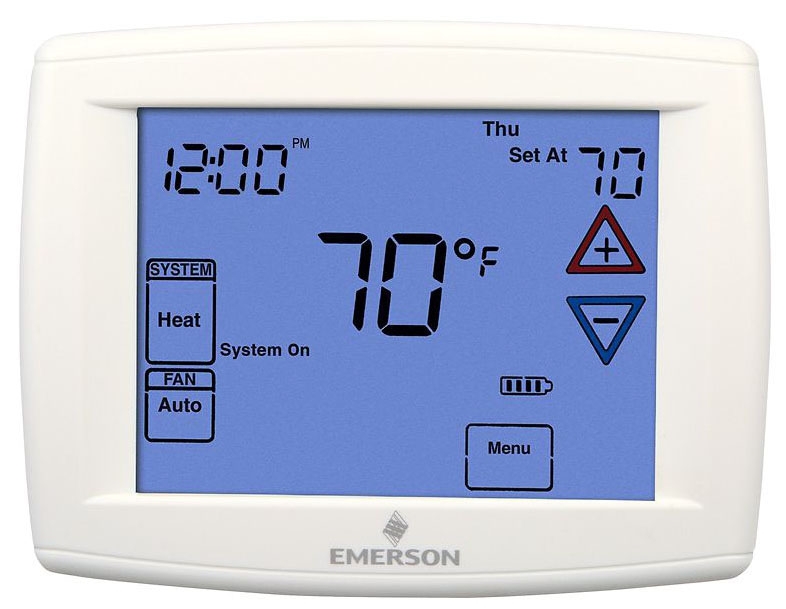

1F95-1291 BLUE 7 DAY MULTI STAGE PROG THERMOSTAT W HUMIDITY CONTROL

Item #: 75787
Manufacturer Item: 1F95-1291
Manufacturer: WHITE-RODGERS/COPELANDCOMFORT
20 to 30 VAC 50/60 Hz, 2.5 A, 32 to 105 Deg F, 1-Heat/1-Cool 1-Stage, 2-Heat/2-Cool Multi-Stage, 4-Heat/2-Cool Heat Pump, 7/5-1-1 Day Programmable, Universal, Thermostat
75787

Universal Models Quickly Configure for 1-Stage, Multi-Stage or Heat Pump and Heat Pump Dual Fuel Systems Programmable or Non-Programmable

Humidity Control Offers Humidification/Dehumidification

Commercial Offers Occupied Damper or Economizer Control

Staging Control for Nearly All Conventional and Heat Pump Systems

Single Stage Model Compatible with All Single Stage Systems Low Voltage, 750 Millivolt and 3-Wire Zone Systems

Heat Pump Dual Fuel Option Eliminates the Need for a Fossil Fuel Kit

Automatic Changeover Option

Program Fan Options

Keypad Lockout and Set point Temperature Limit Options

Indoor Remote Sensor for Averaging Option

Outdoor Remote Sensor Option

Add to Universal Models for Outdoor Temperature Reading or on Select Models, Dual Fuel Balance Point and Outdoor Thermostat Functions

Dual Power Hardwire and/or Battery or Tri-Power Hardwire and/or Battery with System Assist

Digital Programmable

Type
7/5-1-1 Day Programmable, 1-Heat/1-Cool 1-Stage, 2
Temperature Rating
32 to 105 Deg F
Voltage Rating
Millivolt to 30 Volt DC (Battery), 20 to 30 Volt A
Current Rating
2.5 Amp
Cover Type
Rectangular Horizontal
Approval
NEC Class 2
