Home  >  Thermostats and IAQ  >  Thermostats  >  Digital Programmable  > 1F95EZ-0671 BLUE 4 HEAT/2

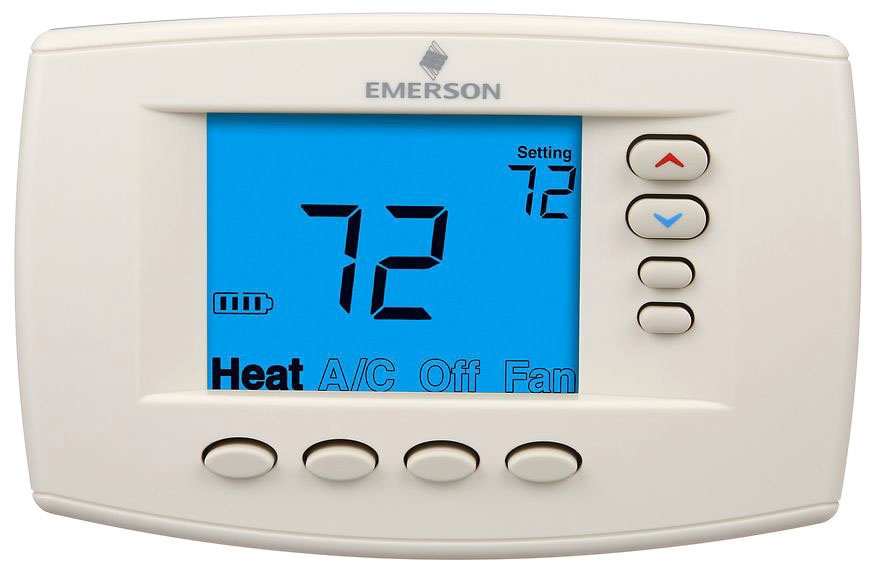

1F95EZ-0671 BLUE 4 HEAT/2 COOL UNIVERSAL EASY READER THERMOSTAT

Item #: 75695
Manufacturer Item: 1F95EZ-0671
Manufacturer: WHITE-RODGERS/COPELANDCOMFORT
20 to 30 VAC, 2.5 A, 6 Sq Inch Display, 32 to 105 Deg F, Horizontal, 4-Heat/2-Cool Heat Pump, 1-Stage, Universal, Non-Programmable Thermostat

Universal Models Quickly Configure for 1-Stage, Multi-Stage or Heat Pump and Heat Pump Duel Fuel Systems Programmable or Non-Programmable

Easy Reader Model is Easy to Read and Easy to Use

Commercial Offers Occupied Damper or Economizer Control and Locking Cover and Subbase

Staging Control for Nearly All Conventional and Heat Pump Systems

1-Stage Model Compatible with all Single Stage Systems Low Voltage, 750 Millivolt and 3-Wire Zone Systems

1F97-0671 Not Pictured

Heat Pump Dual Fuel Option Eliminates the Need for a Fossil Fuel Kit

Automatic Changeover Option

Program Fan Options

Keypad Lockout and Setpoint Temperature Limit Options

Indoor Remote Sensor for Averaging Option

Outdoor Remote Sensor Option on Select Universal Models for outdoor Temperature Reading and Dual Fuel Balance Point or Outdoor Thermostat Function

Dual Power Hardwire and/or Battery or Tripower - Hardwire and/or Battery with System Assist

Digital Programmable

Type
Non-Programmable, 4-Heat/2-Cool 1-Stage/Multi-Stag
Temperature Rating
32 to 105 Deg F
Voltage Rating
Millivolt to 30 Volt DC (Battery), 20 to 30 Volt A
Current Rating
1.5 Amp (Load per Terminal), 2.5 Amp (Maximum Load
Cover Type
Rectangular Horizontal
Approval
NEC Class 2
