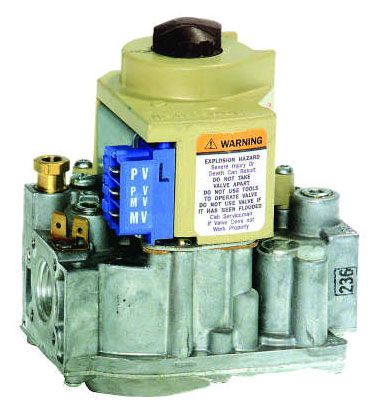

VR8204C1019/U GAS VALVE

Item #: 73945
Manufacturer Item: VR8204C1019/U
Manufacturer: RESIDEO-ADEMCO
1/2" x 1/2", Compression x Compression, 24 VAC at 60 Hz, 1/2 PSI, Step Opening, 0 to 175 Deg F, Intermittent Pilot, 1-Stage, Straight-Through, Diaphragm, Solenoid Gas Valve
73945

Combination Gas Control for Use in 24 Volt AC Gas-Fired, Intermittent Pilot Appliances with Capacities from 30 to 415 CFH

Compact Size

Solenoid-Operated First Automatic Valve Opens on Thermostat Call for Heat, Closes When Call for Heat End

Diaphragm Operated Second Automatic Valve Opens Under Control of Regulator, Closes if Gas or Power Supply is Interrupted

All Adjustment, Wiring Connections and Pilot Outlet are Accessible from Top of Control

Adjustable Servo Regulator Effectively Maintains Almost Constant Gas Output Pressure Under Wide Fluctuations in Gas Supply Pressure

Compatible with ECO Connector

On-Off Lighting Sequence

Gas Valves

Type
Step Opening, Intermittent Pilot, 1-Stage, Straigh
Temperature Rating
0 to 175 Deg F
Applicable Standard
UL, CSA, AGA
Pressure Rating
1/2 PSI
Input Supply Rating
24 Volt AC 60 Hertz
Inclusions/Features
Safety Shut-Off, Manual Valve, (2) Automatic Opera
Application
Residential Gas-Fired Appliance
Port Connection
1/2 Inch Compression x 1/2 Inch Compression
Media Handled
Natural Gas
Mounting Details
0 to 90 Degree in any Direction from Upright Posit
