Home  >  HVAC Service Parts  >  Heating Parts Service  >  Gas Valves  > VR8200H1251/U COMB GAS

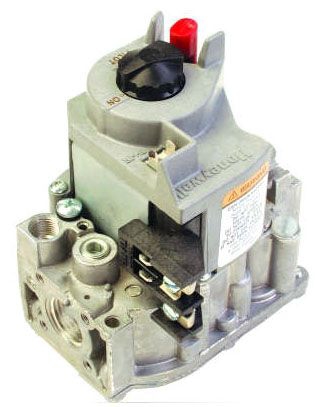

VR8200H1251/U COMB GAS CONTROL

Item #: 73937
Manufacturer Item: VR8200H1251/U
Manufacturer: RESIDEO-ADEMCO
1/2", 24 VAC 60 Hz, 1/2 PSI, Natural Fuel, Straight Through, Slow Opening, Standing Pilot, 1-Stage, Gas Valve
73937

Compact Size

Solenoid Operated First Automatic Valve Opens on Thermostat Call for Heat, Closes when Call for Heat Ends

Diaphragm Operated Second Automatic Valve Opens Under Control of Regulator, Closes if Gas or Power Supply is Interrupted

All Adjustments, Wiring Connections and Pilot Outlet are Accessible from Top of Control

Adjustable Servo Regulator Effectively Maintains Almost Constant Gas Output Pressure Under Wide Fluctuations in Gas Supply Pressure

Compatible with ECO Connector

LITE-RITE (Off-Pilot-On) Lighting Sequence

Gas Valves

Type
Straight Through, Slow Opening, Standing Pilot, 1-
Temperature Rating
0 to 175 Deg F
Applicable Standard
UL, CSA
Pressure Rating
1/2 PSI
Input Supply Rating
24 Volt AC 60 Hertz
Inclusions/Features
(1) 3/4 Inch Straight Flange, (1) 1/2 Inch x 3/8 I
Application
Gas Fired Standing Pilot Appliance
Nominal Size
1/2 Inch
