Home  >  HVAC Service Parts  >  Heating Parts Service  >  Gas Valves  > VR8200C1041/U COMB GAS

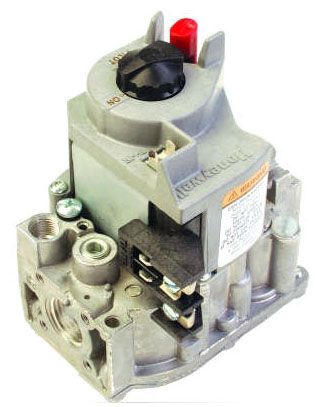

VR8200C1041/U COMB GAS CONTROL

Item #: 73936
Manufacturer Item: VR8200C1041/U
Manufacturer: RESIDEO-ADEMCO
1/2" x 1/2", Compression x Compression, 24 VAC at 60 Hz, 1/2 PSI, Step Opening, 0 to 175 Deg F, Standing Pilot, 1-Stage, Straight-Through, Diaphragm, Solenoid Gas Valve
73936

Combination Gas Control for Use in 24 Volt AC Gas-Fired, Standing Pilot Appliances with Capacities from 30 to 300 CFH

Compact Size

Solenoid-Operated First Automatic Valve Opens on Thermostat Call for Heat, Closes When Call for Heat End

Diaphragm Operated Second Automatic Valve Opens Under Control of Regulator

Closes if Gas or Power Supply is Interrupted

Meets Codes Requiring Dual Safety Shut-Off

Lite-Rite (Off-Pilot-On) Lighting Sequence

All Adjustments, Wiring Connections and Pilot Outlet are Accessible from top of Control

Adjustable Servo Regulator Effectively Maintains Almost Constant Gas Output Pressure Under Wide Fluctuations in Gas Supply Pressure

Compatible with ECO Connector

Gas Valves

Type
Step Opening, Standing Pilot, 1-Stage, Straight-Th
Temperature Rating
0 to 175 Deg F
Applicable Standard
UL, CSA, AGA
Pressure Rating
1/2 PSI
Input Supply Rating
24 Volt AC 60 Hertz
Inclusions/Features
Low Voltage, Manual Valve, (2) Automatic Operator,
Application
Residential Gas-Fired Appliance
Port Connection
1/2 Inch Compression x 1/2 Inch Compression
Media Handled
Natural Gas
Mounting Details
0 to 90 Degree in any Direction from Upright Posit
