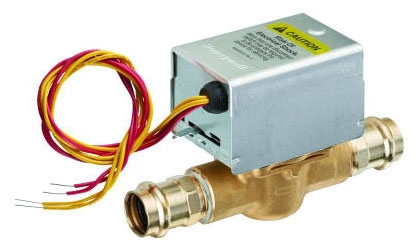

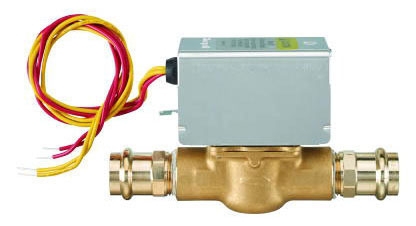

V8043F1512/U 3/4 INCH PROPRESS ZONE VALVE WITH END SWITCH
Item #:
73859
Manufacturer Item: V8043F1512/U
Manufacturer:
RESIDEO-ADEMCO
3/4" x 3/4", ProPress x ProPress, 24 VAC at 50/60 Hz, 0.32 A, 7.7 VA, 120 PSI Static, 3 CV, Brass, 2-Position, Spring Return to Close Actuation, NC, 2-Way, Straight-Through, Motorized Zone Valve with Screw Terminal Block and End Switch
2-Way On-Off Low Voltage Valves Consist of an Actuator and Valve Assembly for Controlling the Flow of Hot Water
Manual Opener (On All Models, Except Straight-Through, Normally Open Valves) for Valve Operation on Power Failure
Valve Returns to Automatic Position when Power is Restored
All Models May be Installed without Disassembling the Valve
Compact Construction for Easy Installation
Complete Power Head May be Removed or Replaced without Breaking Plumbing Line Connections or Draining the System
Actuator Motor May be Replaced without Removing the Valve Body or Draining the System
Zone Valves
Type
2-Way, Straight-Through
Inclusions/Features
Manual Opener, End Switch
Input Supply Rating
24 Volt AC 50/60 Hertz 0.32 Amp 7.7 Volt Amp
Application
Hydronic Control
Body Material
Brass
Media Handled
Hot Water
Pressure Rating
20 PSI (Differential Close-Off), 120 PSI (Static)
Temperature Rating
40 to 200 Deg F (Fluid)
Valve Timing
15 Second (NO)
End Connection
ProPress x ProPress
Actuation Type
2-Position, Spring Return to Close
Applicable Standard
UL, CSA
Valve Position
NC
