Home  >  Hydronics  >  Valves  >  Zone Valves  > V8043F1036/U 3/4 INCH ZONE

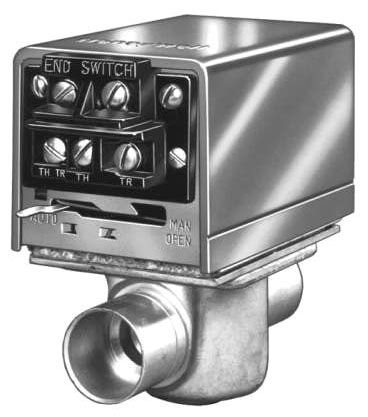

V8043F1036/U 3/4 INCH ZONE VALVE

Item #: 73857
Manufacturer Item: V8043F1036/U
Manufacturer: RESIDEO-ADEMCO
3/4", Soldered x Soldered, 24 VAC 50/60 Hz, 0.32 A, 7.7 VA, 125 PSI, 3.5 CV, Brass, NC, 2-Position, Spring Return to Close, 2-Way, Straight Through, Low Voltage, Motorized Zone Valve
73857

Two Way On-Off Low Voltage Valves Consist of an Actuator and Valve Assembly for Controlling the Flow of Hot Water

Manual Opener (On All Models, Except Straight Through, Normally Open Valves) for Valve Operation on Power Failure

Valve Returns to Automatic Position When Power is Restored

All Models May be Installed without Disassembling the Valve

Compact Construction for Easy Installation

Complete Powerhead May be Removed or Replaced without Breaking Plumbing Line Connections or Draining the System

Actuator Motor May be Replaced without Removing the Valve Body or Draining the System

Zone Valves

Type
2-Way, Straight Through, Low Voltage
Inclusions/Features
Manual Opener, Normally Open SPST End Switch
Input Supply Rating
24 Volt AC 50/60 Hertz 0.32 Amp, 7.7 Volt Amp
Application
Hydronic Control
Body Material
Brass
Media Handled
Hot Water
Pressure Rating
20 PSI (Close Off), 125 PSI (Static)
Temperature Rating
50 to 200 Deg F (Fluid)
Valve Timing
15 Second (Open)
End Connection
Soldered x Soldered
Actuation Type
2-Position, Spring Return to Close
Applicable Standard
UL, CSA
Valve Position
NC
