> R8225A1017/U FAN RELAY SPDT

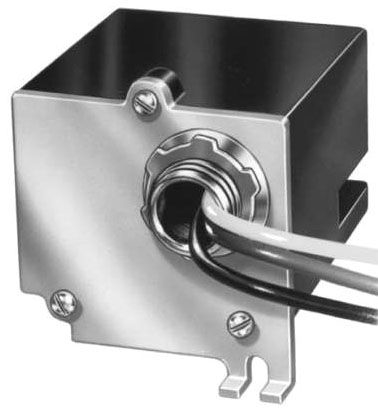

R8225A1017/U FAN RELAY SPDT
Item #:
72520
Manufacturer Item: R8225A1017/U
Manufacturer:
RESIDEO-ADEMCO
120/240 VAC, 24 V AC 60 Hz Coil, SPDT, Double Quick-Connect/Lead Wire Terminal, AC Operated, Fan Relay
Molded Terminal Numbers and Circuit Diagram on Top of Relay Provide Easy Identification for Wiring and Checking System
Untapped Coil Assures Cooler Operation
Laminated Magnet Construction for Higher Efficiency
Base Designed for Easy Replacement of Competitive Relay
fan and limit controls
Type
AC Operated
Approval
UL, CSA
Contact Configuration
SPDT
Contact Voltage Rating
120/240 Volt AC
Terminal Type
Double Quick-Connect, Lead Wire
Contact Current Rating
8 Amp (NO), 7 Amp (NC), 2 Amp (Auxiliary) at 240 V
Coil Voltage
24 Volt AC 60 Hertz
