> R4222N1002/U RELAY DPDT

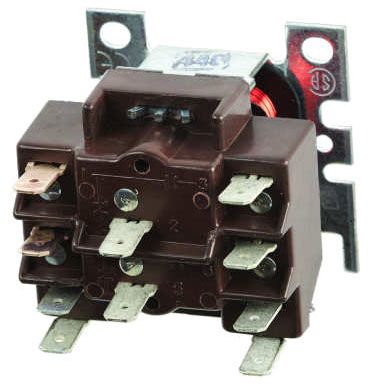

R4222N1002/U RELAY DPDT 120V PILOT
Item #:
72406
Manufacturer Item: R4222N1002/U
Manufacturer:
RESIDEO-ADEMCO
480 VAC 50/60 Hz Contact, 120 VAC Coil, 12 A, DPDT, 1/4" Quick-Connect, Surface Mount, AC Operated, General Purpose Relay
Molded Terminal Number and Circuit Diagram on Top of Relay Provide Easy Identification for Wiring and Checking System Operation
Untaped Coil Assures Cooler Operation
Laminated Magnet Construction for High Efficiency
Base Designed for Easy Replacement of Competitive Relay
relays-Heating Parts Service
Coil Voltage
120 Volt AC at 50/60 Hertz
Contact Configuration
DPDT
Contact Current Rating
3 Amp at 480 Volt AC, 6 Amp at 208/240/277 Volt AC
Terminal Type
1/4 Inch Quick-Connect
Contact Voltage Rating
120/208/240/277/480 Volt AC at 50/60 Hertz
Type
AC Operated
Approval
UL, CSA
Mounting
Surface
