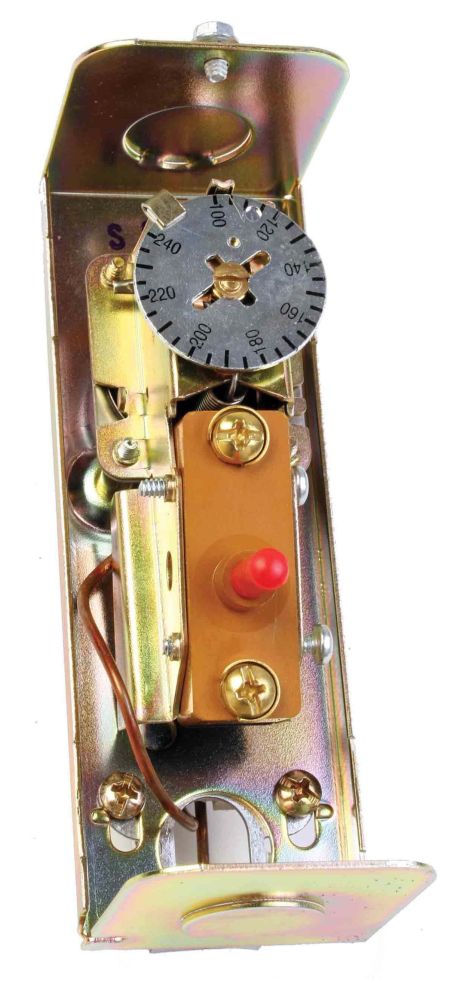

L4006H1004/U STRAP-ON MANUAL RESET AQUASTAT

Item #: 70564
Manufacturer Item: L4006H1004/U
Manufacturer: RESIDEO-ADEMCO
2" x 2-1/8" x 5-5/8", 3/4" Conduit, Screw Terminal, 100 to 240 Deg F, SPST, Contact Break on Temperature Rise, 3/8" x 2-7/8" Copper Bulb, 1-1/2" Capillary, Direct Horizontal/Vertical Well Immersion, High/Strap-On, Temperature Controller
70564

Totally Enclosed Micro Switch Snap Acting Switches Operate on Temperature Rise to Set Point

Visible Control Point Scale and External Adjustment Screw Permit Easy Setting

Direct or Well Immersion of the Sensing Element

Horizontal or Vertical Insertion of the Sensing Element

Remote Bulb Model May be Used to Sense Air Temperature in Ducts and in Outside Air Sensing Application

Aqua Stats

Type
3/8 Inch Diameter x 2-7/8 Inch Length Copper Bulb,
Application
Boiler, Storage Tank
Approval
UL, CSA
Contact Configuration
SPST, Contact Break on Temperature Rise
Contact Rating
8 Amp at 120 Volt AC/5.1 Amp at 240 Volt AC (Full
Maximum Temperature Rating
150 Deg F
Temperature Range
100 to 240 Deg F
Connection Type
3/4 Inch Conduit, Screw Terminal
