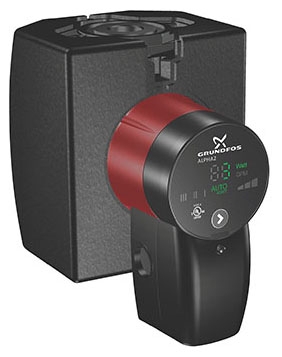

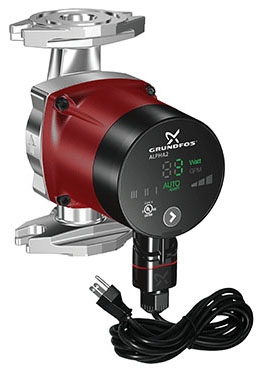

ALPHA2 26-99F 115V CAST IRON PUMP W/ FLANGE AND CHECK VALVE

Item #: 70044
Manufacturer Item: 99490916
Manufacturer: GRUNDFOS (LTA & HS Buyvan)
15/26" Suction/Discharge, 115 VAC 60 Hz 1-Phase, 1.7 A, 0.16 HP, Cast Iron, High-Efficiency, Variable Speed, Circulator Pump

A magnetite-resistant design, robust ceramic shaft and stainless-steel bearing plate ensure that the reliably delivers the optimal system performance throughout the years at the lowest possible energy consumption

Reliability in small domestic circulators to new heights

Ensure long-lasting trouble-free operation with no risk of blockage

Trouble-free heating solution

Versatile and efficient

Hydronic Pumps

Temperature Rating
130 Deg F (Ambient), 14 to 203 Deg F (Liquid)
Input Supply Rating
115 Volt AC 60 Hertz 1-Phase, 1.7 Amp
Overall Dimensions
6.5 Inch Length x 5.91 Inch Width x 4.45 Inch Heig
Power Rating
0.16 HP
Inclusions/Features
3-Constant Pressure, Auto Adapt Control Mode, Cast
Type
High Efficiency, Variable Speed
Applicable Standard
UL (Canada and US)
Pressure Rating
150 PSI
Motor Type
ECM, Electronically Protected
Casing Material
Cast Iron
Shaft Material
Ceramic
Impeller Material
Composite
Application
Heating, Air Conditioner
End Connection
GF x GF
Flow Rate
0 to 28 GPM
Discharge Head
0 to 42 Foot
Impeller Design
Closed
