Home  >  Hydronics  >  Boilers  >  Indirect Fired Water Heaters  > 633-600-003 IWH AQUA PLUS

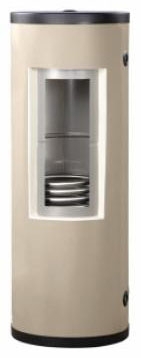

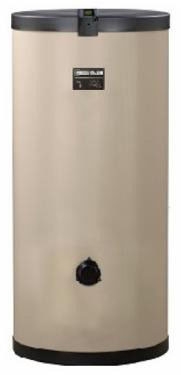

633-600-003 IWH AQUA PLUS 85 SS S2

Item #: 68053
Manufacturer Item: 633-600-003
Manufacturer: WEIL-MCLAIN CORP
1" x 1", NPT x NPT, 81.6 Gallon, 150 PSI, Stainless Steel, 2" Thick CFC-Free Foam Insulation, Indirect-Fired Water Heater

AHRI Certified®-The Trusted Mark of performance Assurance

Factory Pressure Tested

Fully Passivated 316L Stainless Steel Tank and Coil Design

Precise Digital Thermostat-Residential and Commercial Compatible

2 Inch Thick CFC-free Foam Insulation

Resilient Vinyl Jacket

Heavy Duty Poly Resin Top and Bottom Covers

Adjustable Foot for Uneven Floors

High Output Heat Exchanger

Advanced Digital Control

Fully Passivated and Welded Design-No Anode Rod Needed

Operates as a zone to the boiler, reducing fuel consumption

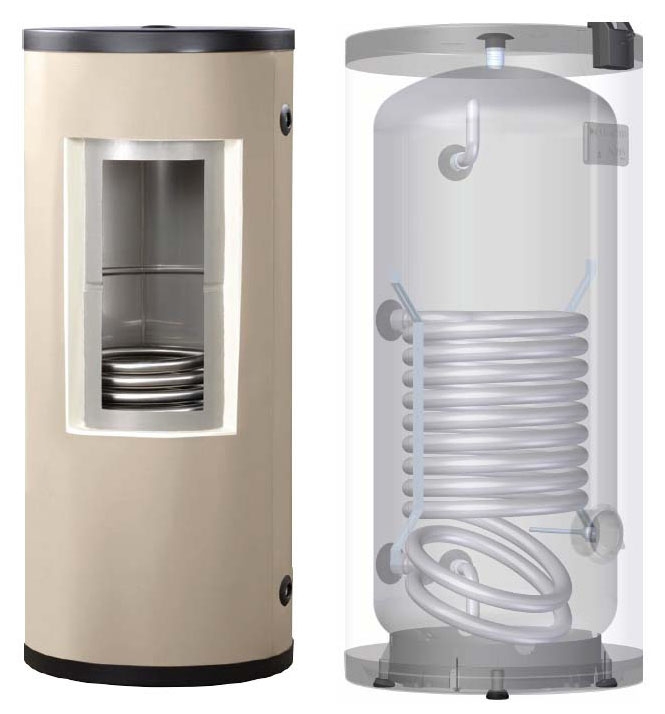

Tightly wound coil provides a faster recovery than direct fired water heaters

No additional exhaust flues or fuel piping to consider

Boiler operates less frequently than with other water heating types resulting in higher efficiencies

Delivers superior first hour gallons per minute domestic hot water

Indirect Fired Water Heaters

Application
Residential, Commercial
Flow Rate
14 GPM
Tank Capacity
81.6 Gallon, 2.7 Gallon (Boiler Side)
Tank Material
Stainless Steel
Boiler Supply/Return Connection
1 Inch Threaded x 1 Inch Threaded
Tank Dimensions
26 Inch Diameter x 59-1/2 Inch Height
Tank Warranty
7 Year (Commercial), 12 Year (Residential)
Applicable Standard
AHRI, CSA (Canada and US)
Gross Boiler Output
300000 BTU/Hour at 200 Deg F
Head Loss
5.4 Foot
Insulation Details
2 Inch Thick CFC-Free Foam
Pressure Rating
150 PSI (Tank), 145 PSI (Coil)
GPH Recovery
347 GPH at 77 Deg F
Inlet/Outlet Connection
1 Inch Threaded x 1 Inch Threaded
Relief Valve Details
T and P Relief Valve
