Home  >  HVAC Equipment  >  Specialty HVAC  >  Unit Heaters-Specialty  > RZUEAS130 130,000 BTUH 115V

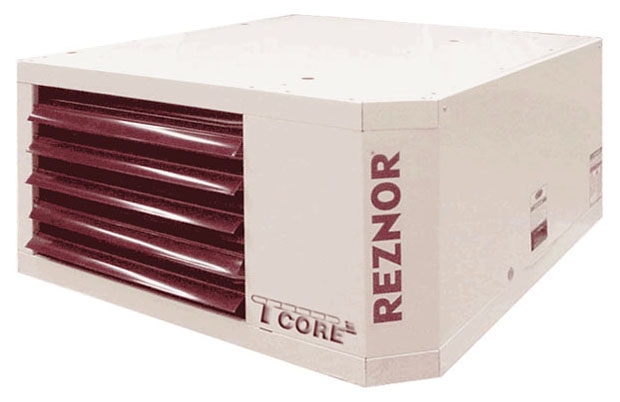

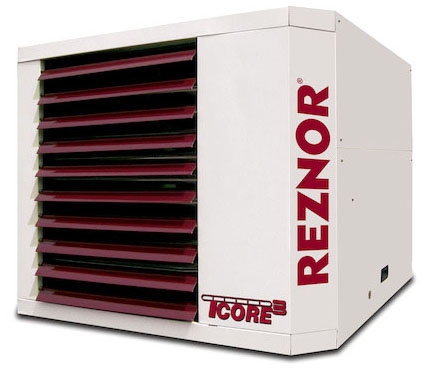

RZUEAS130 130,000 BTUH 115V SUPER - HIGH EFFICENCY UNIT HEATER

Item #: 67736
Manufacturer Item: RZUEAS130
Manufacturer: REZNOR LLC
131000 BTU/Hr, 115 VAC 60 Hz 1-Phase, 6.3 A, 2256 CFM, Super High Efficiency, Separated Combustion, Gas-Fired Unit Heater
You must be logged in to order this item.
Log in here

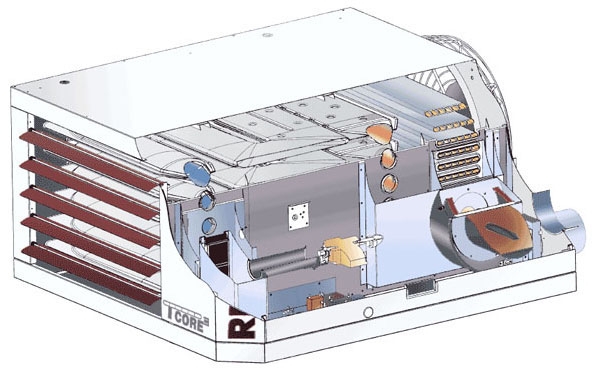

Patented a single burner combustion system including a one-piece burner assembly

115 Volt Open Fan Motor with Internal Overload Protection

Integrated circuit board with diagnostic indicator lights

Multi-try direct ignition with timed lockout

Fan relay (included on the circuit board)

Single-stage natural gas valve

Vibration/noise isolated fan motor

Sealed control compartment houses all electrical components

48 frame, ball bearing, PSC venter motor

4-point Suspension

External terminal strip for 24 volt wiring

Sealed junction box for supply wiring

External Gas Connection

Fully gasketed door panel with safety door switch

Full Fan Guard Engineered for Safety

Improved Cabinet Design with Less Visible Hardware

Unit Heaters-Specialty

Type
Super High Efficiency, Separated Combustion, Low S
Control Type
24 Volt Transformer
Capacity
131000 BTU/Hour (Input), 121830 BTU/Hour (Output)
Current Rating
6.3 Amp
Voltage Rating
115 Volt AC 60 Hertz
Approval
ETL (Canada and US), CQS
Application
Commercial, Industrial, Residential Garage, Greenh
Number of Phases
1
Air Flow Rate
2256 CFM
Fan/Motor Type
Isolated Axial Fan, 115 Volt 1050 RPM 1/4 HP Stand
Finish
Glossy White
Heating Element
Titanium Stabilized Aluminized Steel
Power Rating
657 Watt
Mounting
Ceiling
