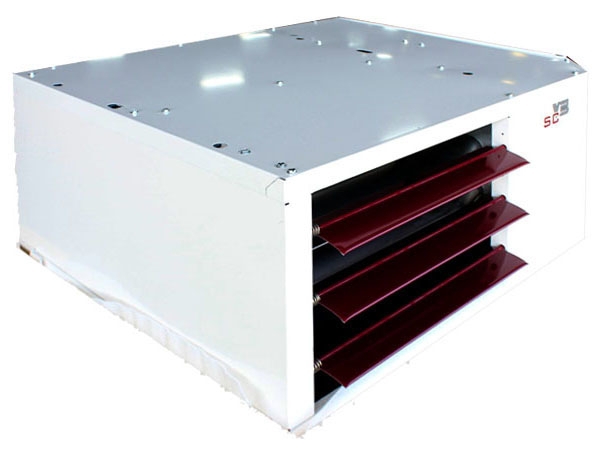

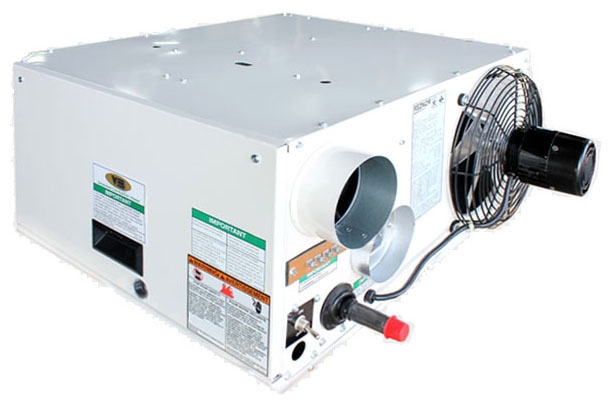

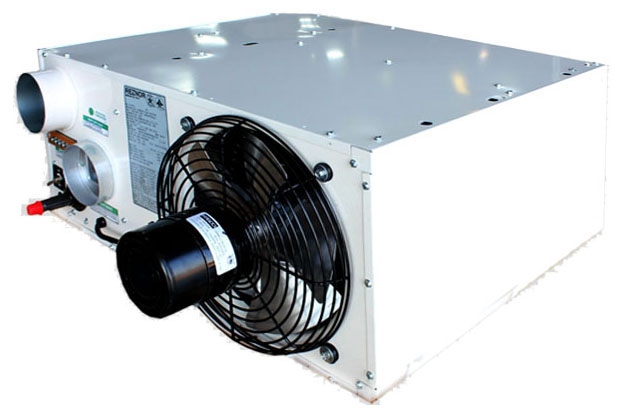

ActionsRZUDAS45 45,000 BTUH V3 SEP.COMB.UNIT HEATER
Item #:
67712
Manufacturer Item: UDAS45
Manufacturer:
NORTEK
45000 BTU/Hr, 115 VAC 60 Hz, Glossy White, Power Vented, High Efficiency, Separated Combustion, Gas Fired Unit Heater
1257.30
This item is discontinued
Sizes 30-400 certified for commercial/industrial heating application
Tcore2 titanium stabilized aluminized steel heat exchanger
Patented A single burner combustion system including a one-piece burner assembly
115 Volt open fan motor with internal overload protection
Transformer for 24-volt controls
Integrated circuit board with diagnostic indicator lights
Multi-try direct spark ignition with timed lockout
Fan relay (included on the circuit board)
Single-stage natural gas valve
External terminal strip for 24-volt wiring
External gas connection
Improved cabinet design with less visible hardware
Unit Heaters-Specialty
Type
Power Vented, High Efficiency, Separated Combustio
Control Type
24 Volt Transformer
Capacity
45000 BTU/Hour (Input), 37350 BTU/Hour (Output)
Current Rating
2.4 Amp (Full Load)
Voltage Rating
115 Volt AC 60 Hertz
Approval
CSA 2.6B, ANSI Z83.8B, CQS
Application
Retail, Showroom, Workshop, School, Exhibition Hal
Number of Phases
1
Air Flow Rate
629 CFM
Fan/Motor Type
0.03 HP (Open), 0.06 HP (Enclosed), 1550 RPM Motor
Material
Titanium Stabilized Aluminized Steel (Heat Exchang
Finish
Glossy
Power Rating
155 Watt
Mounting
Ceiling
Color
White
