Home  >  Hydronics  >  System Components  >  Expansion Tanks  > HTX60 #60 6 GALLON TANK

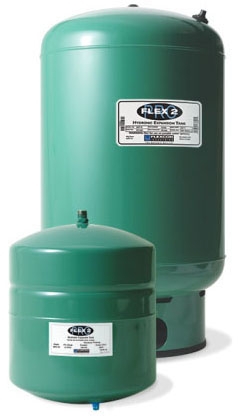

HTX60 #60 6 GALLON TANK

Item #: 65443
Manufacturer Item: HTX60
Manufacturer: FLEXCON / KAST MARKETING
11.4" x 17.2", 1/2" MPT x 1/2" MPT, 6 Gallon, 16 Gauge Cold Rolled Steel, 100 PSI, Hydronic Expansion Tank
65443

A pre-charged air chamber allows for system water expansion

The air charge is controlled via a charging valve located on the top or bottom of the tank

Additionally, both tank lines' diaphragms are oversized, which maximizes drawdown and minimizes wear

This design feature virtually eliminates diaphragm stretch, further promoting longevity

Expansion Tanks

Application
Residential and Commercial
Diaphragm Type
Butyl Rubber
Inclusions/Features
Brass Valve with O-Ring Seal Air Valve, High Press
Inlet/Outlet Connection
1/2 Inch Male Threaded x 1/2 Inch Male Threaded
Pressure Rating
100 PSI
Tank Capacity
6 Gallon
Tank Dimensions
11.4 Inch Diameter x 17.2 Inch Height
Tank Material
16 Gauge Cold Rolled Steel
Tank Warranty
5 Year
Temperature Rating
240 Deg F
Air Charge Capacity
12 PSI
