Home  >  Hydronics  >  Pumps and Parts  >  Hydronic Pumps  > 106197LF 100 BNFI 1/12HP

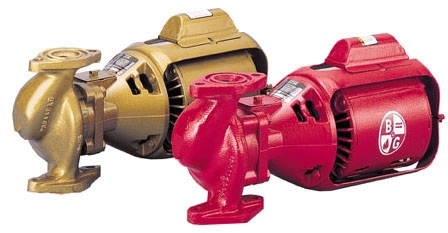

106197LF 100 BNFI 1/12HP BRONZE PUMP L/FLANGES

Item #: 65362
Manufacturer Item: 106197LF
Manufacturer: B&G C/O HYDRONIC & STEAM
3/4" or 1" or 1-1/4" or 1-1/2" Suction, 3/4" or 1" or 1-1/4" or 1-1/2" Discharge, Flanged x Flanged, 1/12 HP, 115 VAC 60 Hz 1-Phase 1.75 A, 1725 RPM, 125 PSI, Lead-Free, Centrifugal Brass Impeller, Bronze Casing, 3-Piece, In-Line, Horizontal, Circulating Booster Pump
65362

B and G Motor is the Heart of the Booster

The Finest Circulator Motor Available

Sleeve Bearing, Oil Lubricated with Replaceable Resilient Motor Mounts

Noise Dampening Coupler

B and G Own Flexible Spring Design Adds to Quiet Operation

Long Bronze Sleeve Bearings Maintain Exact Shaft Alignment

Provides for Constant Circulation of Oil Over Bearing Surfaces

Precision Ground Pump Shaft is Oversized to Provide Large Bearing Surfaces

Hardened Integral Thrust Collar Minimizes End-Thrust to Ensure Long Seal and Bearing Life

The B and G Mechanical Seal is Designed to Withstand the Wide Range of Water Temperatures, Pressures, Additives and Dissolved Solids Common in Hydronic Systems

Centrifugal Impeller Prevents Accumulation of Air at Seal Faces to Assure Long Life

Close Impeller/Body Tolerances Minimize Water Slippage and Maximize Efficiency

Lead-Free

Hydronic Pumps

Temperature Rating
225 Deg F
Input Supply Rating
115 Volt AC 60 Hertz 1-Phase 1.75 Amp
Overall Dimensions
14-7/8 Inch Length x 6-3/8 Inch Height
Power Rating
1/12 HP
Inclusions/Features
Sleeve Bearing, Noise Dampening Coupler, Precision
Type
3-Piece, In-Line, Horizontal
Applicable Standard
UL, UL (Canada and US), CSA
Pressure Rating
125 PSI
Motor Type
Oil Lubricated, Open Dripproof Motor
Casing Material
Bronze
Shaft Material
Heat Treated Carbon Steel
Impeller Material
Brass
Application
Hydronic Heating System
End Connection
Flanged x Flanged
Speed Rating
1725 RPM
Impeller Design
Centrifugal
Shaft Seal Details
Carbon on Ceramic Mechanical Seal
