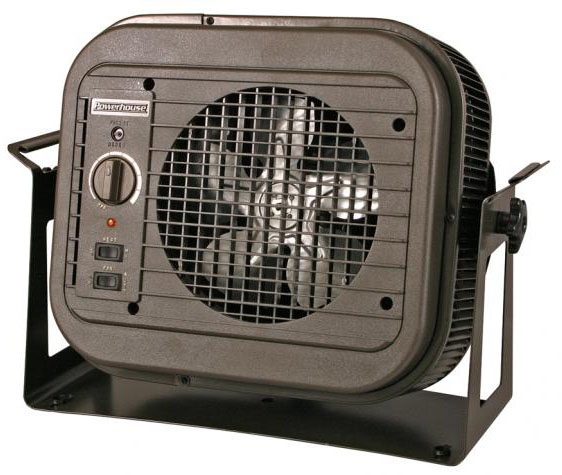

MUH35 HOUSE HEATER

Item #: 63835
Manufacturer Item: MUH35
Manufacturer: QMARK/MARLEY
12795/17060 BTU/Hr, 208/240 VAC 1-Phase, 18/21 A, 3.7/5 kW, Charcoal Gray, Die-Formed Steel, Fan Forced Unit Heater
63835

Air flow can be directed vertically, horizontally or any position in between

Mounts either on wall or ceiling for primary or spot heating (bracket included)

Built-in bi-metal thermostat

multiple wattage heat selector switch for precise amount of heat

Fan-only switch for air movement when no heat is required

Specially designed venturi outlet to meet required additional air throw in vertical position

Advanced pull-through air flow design draws air across heating element for even air distribution and cooler element operation

Heavy gauge die-formed steel housing and completely enclosed fan motor

Aluminum-finned, copper-clad steel sheath heating element extends life due to cooler sheath temperature and faster heat dissipation

High temperature manual thermal cut-off with audible alarm for added safety

Manual reset thermal cut-off button located on front for easy access

Unit Heaters-Specialty

Control Type
Built-In Bi-Metal Thermostat
Capacity
12795/17060 BTU/Hour
Current Rating
18/21 Amp
Voltage Rating
208/240 Volt AC
Approval
UL (Canada and US)
Application
Factory, Garage, Primary Spot Heating, School, Shi
Number of Phases
1
Air Flow Rate
210 CFM
Fan/Motor Type
1/100 HP 1600 RPM Completely Enclosed
Material
Die-Formed Steel
Heating Element
Aluminum Finned Copper Clad Steel Sheath
Power Rating
3.7/5 Kilowatt
Mounting
Wall/Ceiling
Color
Charcoal Gray
