Home  >  Hydronics  >  Water Heaters  >  Residential Gas  > GP6-50-YTPDT 96% PREMIER

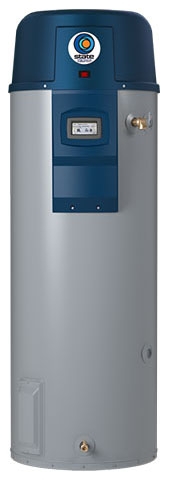

GP6-50-YTPDT 96% PREMIER 100KBTU NAT PWR DIRECT VENT HTR AL-2A

Item #: 63189
Manufacturer Item: GP6-50-YTPDT
Manufacturer: STATE INDUST%ORDER ENTRY
100000 BTU/Hr, 50 Gallon, Lead-Free, Natural, Tall, Condensing, Commercial-Grade, Residential Gas Water Heater
63189

Exclusive State designed touch display control system

Built-in diagnostics and operational information

High efficiency operation with up to 0.88 Uniform Energy Factor to save money on operating costs

Spiral heat exchanger keeps hot combustion gases in the tank longer to lengthen the heat transfer cycle

Positioned in the center of the tank for more even heat distribution

Spiral design reduces lime scale formation on the heat exchanger to maintain high efficiency operation over time

Provides superior corrosion resistance compared to industry standard glass lining

Energy Star® Rated

Lead-Free

Residential Gas

Applicable Standard
UL (Canada), UL, CSA, AHRI
Drain Valve Details
Solid Brass, Tamper Resistant, Enhanced Flow, Ball
Inclusions/Features
Advanced Electronic Control, Precise Temperature C
Input Supply Rating
100000 BTU/Hour
Tank Capacity
50 Gallon
Tank Dimensions
22 Inch Diameter x 66-3/4 Inch Height
Tank Warranty
6 Year
Type
Tall, Condensing, High Efficiency, Commercial Grad
GPH Recovery
129 GPH at 90 Deg F
Inlet/Outlet Connection
3/4 Inch x 3/4 Inch
Gas Type
Natural
Ignition Type
Electronic
Relief Valve Details
T and P Relief Valve
Tank Height Including Draft Hood
66-3/4 Inch
Venting Type
Power Direct
Burner Type
Top Fired Ultra-Low NOx Gas
Tank Material
Glass Coating
Energy Saver Conformance
Yes
