Home  >  Hydronics  >  Water Heaters  >  Commercial Gas  > SBD81-199NE STATE COMM NAT

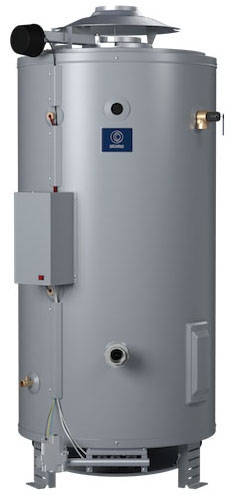

SBD81-199NE STATE COMM NAT HTR

Item #: 62772
Manufacturer Item: SBD81-199NE
Manufacturer: STATE COMMERCIAL
199000 BTU/Hr, 81 Gallon, Lead-Free, Permaglas Ultra Coat Glass Lined, Intermittent Electronic Ignition, Power Vent, Self-Cleaning, Commercial Natural Gas Water Heater
62772

Sandblaster is the Original Money Saving Self-Cleaning Water Heater

It Provides Outstanding Performance and Installation Flexibility for New Construction and Replacement Applications

Significantly Reduces Sediment Buildup Inside the Tank

Maintains Rated Thermal Efficiency, Reduces Water Heating Costs

Maximizes Tank Life

Automatic Motorized Flue Damper Helps Minimize Standby Heat Loss

Low-Profile Draft Diverter Helps for Installation in Tight Spaces

Hot and Cold Water Connections can be Made through Front, Top or Rear of Unit

Hydro Cannon Operates When Cold Water is Connected through Front

Eliminates Standing Pilot, Saves Energy

Anode Rods Provides Outstanding Protection Against Corrosion

Multiple Anode Rods with Stainless Steel Cores for Longer Life

Manual Reset Gas Shut-Off Device Prevents Excessive Water Temperature

Gas Pressure Regulator and Pilot Filter

Allows Easy Access to Tank Interior for Cleaning

Pipe Nipples and Caps to Plug Unused Water Connections

AHRI Certified

Lead-Free

Commercial Gas

Applicable Standard
AHRI, ASHRAE/IESNA 90.1, ANSI Z.21.10.3, NSF 5, AS
Inclusions/Features
Self-Cleaning Hydro Cannon, Automatic Flue Damper,
Tank Capacity
81 Gallon
Tank Dimensions
27-3/4 Inch Diameter x 62 Inch Height
Tank Warranty
3 Year Limited
Gas Connection
1/2 Inch
Gas Type
Natural
GPH Recovery
132 GPH at 140 Deg F
Input Supply Rating
199000 BTU/Hour
Relief Valve Details
CSA/ASME T and P Relief Valve Factory Installed
Ignition Type
Intermittent Electronic
Options
Leg Kit
Type
Self-Cleaning
Tank Height Including Draft Hood
67-1/2 Inch
Venting Type
Power
Insulation Details
Blanket
